Chevrolet/GMC C/K Truck (250/283/292) Cooling Package, 1967-1972

Model
MMCPKG-CK-67
Sale Price $616.95 Regular Price $876.02
-
+
Add to Wish List

$Login or create an account to earn 616 pts on this product.
Key Features
Features
  • Direct fit for 1967-1972 Chevy/GMC C/K Truck with a 250, 283 or 292
  • All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
  • 3-Row brazed aluminum radiator core
  • Billet aluminum radiator fill neck
  • Radiator includes internal transmission cooler to ensure optimal fluid temperatures
  • Includes a high-flow 16-in electric fan, providing over 1850 cfm of airflow
  • Fan Shroud replaces failure-prone stock mechanical fan
  • Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
  • Thermostat is digitally calibrated for precise, consistent operation
  • Mishimoto Lifetime Warranty

Installation Difficulty: Medium

Key Features
  • Direct fit for 1967-1972 Chevy/GMC C/K Truck with a 250, 283 or 292
  • All-aluminum fan shroud and radiator construction increases heat and pressure tolerance
  • 3-Row brazed aluminum radiator core
  • Billet aluminum radiator fill neck
  • Radiator includes internal transmission cooler to ensure optimal fluid temperatures
  • Includes a high-flow 16-in electric fan, providing over 1850 cfm of airflow
  • Fan Shroud replaces failure-prone stock mechanical fan
  • Mishimoto thermostat opens at lower temperature (180F) than standard thermostats, allowing coolant to flow through the engine sooner, reducing engine temperatures
  • Thermostat is digitally calibrated for precise, consistent operation
  • Mishimoto Lifetime Warranty

Product Description

Mishimoto's 1967-1972 C/K Truck Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto's radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your C/K Truck is used as a weekend cruiser or a drag strip monster, Mishimoto's classic cooling package will provide the ultimate coolant system upgrade. As with all our products, this C/K Truck cooling package includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Read more

TECH SPECS

More Information
Overall Height (in)19.3
Overall Length (in)34.1
Overall Width (in)6.5
Core Length (in)28.3
Core Height (in)16.1
Rows3
Inlet (in)1.5
Outlet (in)1.75
Core Thickness (in)2.5
Applications1967-1972 GMC C/K Pickup (250ci 4.1L/283ci 4.6L/292ci 4.8L)

1969-1972 Chevrolet Blazer/GMC Jimmy (250ci 4.1L/292ci 4.8L)

1967-1971 GMC G-Series Van (250ci 4.1L/292ci 4.8L)

1968-1979 GMC P-Series Van(250ci 4.1L/292ci 4.8L)
NoteMISHIMOTO THERMSOTAT ACTIVATION TEMPERATURE
180 F / 82 C

STOCK THERMOSTAT ACTIVATION TEMPERATURE
195 F / 90.5 C

FAN SPECIFICATIONS


MOUNTING HARDWARE
(4) Mounting Spacers
(4) 1-inch Self-tapping Screws
(4) M6 x 1.00 Bolts
(4) M6 x 1.00 Nuts
(4) M6 Lock Washers
(4) M6 Washers

OVERALL SIZE
Length - 29.50-inch
Height - 19.56-inch
Width - .79-inch

CFM
Each fan puts out 1,300 CFM

NOTE
Electric fans already come attached to the shroud

Purchase Includes

Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug

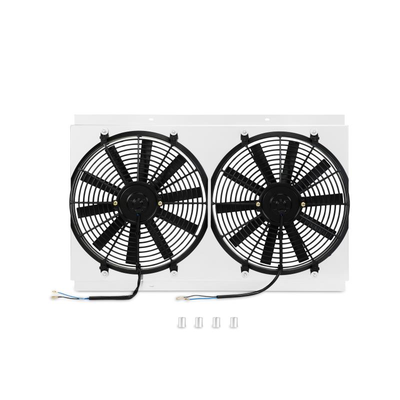

Aluminum Fan Shroud
(2) 14-inch Mishimoto Slim Electric Fans
Mounting Hardware
Mishimoto Thermostat
Mishimoto Lifetime Warranty

Note:

MISHIMOTO THERMSOTAT ACTIVATION TEMPERATURE
180 F / 82 C

STOCK THERMOSTAT ACTIVATION TEMPERATURE
195 F / 90.5 C

FAN SPECIFICATIONS


MOUNTING HARDWARE
(4) Mounting Spacers
(4) 1-inch Self-tapping Screws
(4) M6 x 1.00 Bolts
(4) M6 x 1.00 Nuts
(4) M6 Lock Washers
(4) M6 Washers

OVERALL SIZE
Length - 29.50-inch
Height - 19.56-inch
Width - .79-inch

CFM
Each fan puts out 1,300 CFM

NOTE
Electric fans already come attached to the shroud

Warranty

Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.
