Mishimoto BMW E46 M3 Direct-Fit Oil Cooler Kit, Part 3: Cooler Comparison and Adapter Installation
Interested in purchasing this E46 oil cooler? Check out our product page for more information!
Mishimoto BMW E46 M3 Oil Cooler Kit
Welcome to our third installment of the build! We are nearing the completion of this project, with only some final test fitting necessary and data collection to ensure that this product performs to our standards. First, take a look at the Mishimoto oil cooler compared to the stock unit.

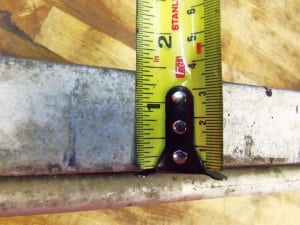

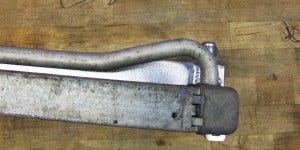

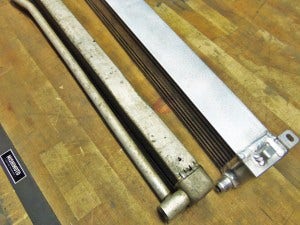

The Mishimoto oil cooler is massive compared to the stock unit. Greater size will provide improved capacity that will aid in reducing temperatures. Additionally, the Mishimoto cooler is constructed using a bar-and-plate core that our engineering team designed. This core will provide improvements in heat transfer compared to the stock tube-and-fin cooler. For reference, the images below show the core size difference.

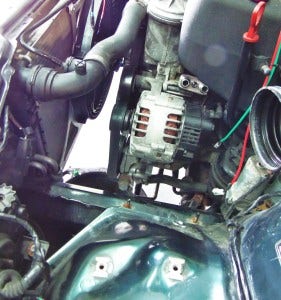

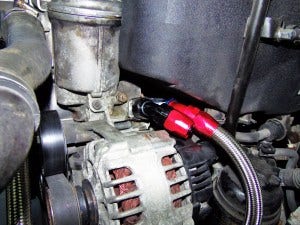

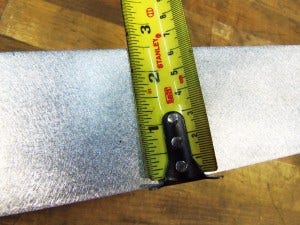

The Mishimoto oil cooler boasts an increase in thickness of over 1 inch! We will have a more in depth evaluation of the core size later on. First, let’s install our oil line adapter setup in preparation for cooler testing!
That concludes the third part of our build log. Next time we will be installing our prototype cooler, setting up our sensors and lines, and collecting testing data for our cooler design.
Thanks for reading!
