When we’re talking about cooling the charged air in any forced induction vehicle, the intercooler always steals the show. To be fair, it is doing a majority of the work. No matter if you’re still running a stock unit or if there’s an all-aluminum core seated in the front of your car, it’s the star. However, the intercooler would be nothing without the back-up band, the intercooler piping. Putting in all the effort to cool off the charged air would be useless without a method to transfer it to the intake. If the stock intercooler unit had some shortcomings, the piping was bound to end up with some flaws, too.

021518_NLT_MK7_GLFR_WEB_7

The safe passage for your charged air is currently left up to the combination of plastic and rubber construction that makes up the factory piping. It might seem that we’re prejudice against these building materials, but it’s quite the opposite. These materials are great for the mass production of your Golf or GTI, providing an easily produced, lightweight channel for the charged air to and from your intercooler. In fact, we are planning on leaving the option to keep your stock piping with our new intercooler design, since they do provide adequate performance on the street and with the stock tune.

There are a few drawbacks, though, especially once the boost starts to turn up. We’ll start with the penny-pinching construction. While these materials are great for the street, their longevity can come into question. Endless cycles of hot and cold can cause cracking in both the plastic and the rubber. The increased pressure and heat from ECU tuning will then put extra stress on these components.

The cold-side piping is made up from the cost-effective dynamic duo that is rubber and plastic. These are great for daily driving, but could show some issues once you add some spice to your daily commute.
The cold-side piping is made up from the cost-effective dynamic duo that is rubber and plastic. These are great for daily driving, but could show some issues once you add some spice to your daily commute.
The MK7's hot-side pipe is made up almost entirely of plastic. This construction is perfect for mass production, but again limits the potential of your turbocharged Golf or Audi
The MK7’s hot-side pipe is made up almost entirely of plastic. This construction is perfect for mass production, but again limits the potential of your turbocharged Golf or Audi
In addition to the plastic construction, the hot-side piping is also full bends and varying diameters, which is not great for keeping your charged air cool.
In addition to the plastic construction, the hot-side piping is also full bends and varying diameters, which is not great for keeping your charged air cool.

Since upgrading your intercooling system is a modification that goes best with an ECU tune, the size of the stock piping is also called into question. Again, under daily driving conditions and the stock tuning, the stock system is perfectly capable. However, the increased airflow that would be seen by remapping your GTI’s brain could prove to be too much for the stock piping. Currently the hot-side piping tapers up from 47mm at the turbo to the intercooler’s 61mm inlet, while the cold-side sits at a 65mm diameter. These dimensions could wind up being a restriction once there’s an increase in boost.

On top of a restricting piping diameter, VW also added in an air straightener to keep the intake volume down. Chances are that you didn't buy a GTI because you wanted it to be quiet.
On top of a restricting piping diameter, VW also added in an air straightener to keep the intake volume down. Chances are that you didn’t buy a GTI because you wanted it to be quiet.

021618_NLT_MK7_GLFR_WEB_2

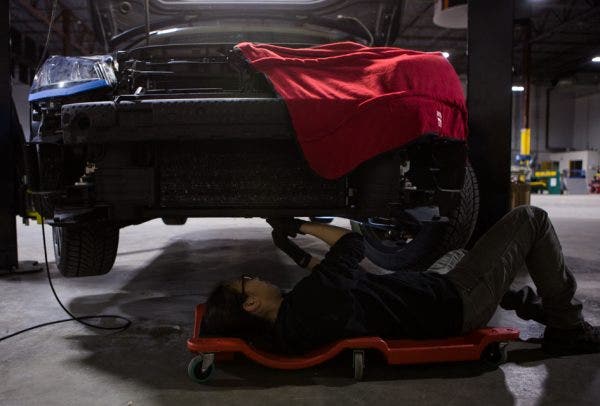

Volkswagen had daily driving on the mind when designing the MK7’s intercooling system. Unfortunately for them, many of their customers still want to add a little extra zip to their daily commute. Luckily we have our eyes on the road, and our engineering team has already set off on the journey to improve not only the intercooler, but the piping as well.
