Finishing Touches – Aluminum Expansion Tank R&D Part 2 – Design Fabrication and Finished Product

If there’s one thing that hasn’t ever changed about muscle cars it’s that they’re hot cars. All the current iterations of American classics have a way of making just about any grade of gearheads neck break as they rumble by, especially when it comes to the latest Mopars. The scalding hot and aggressive looks are enough to sizzle your retinas, and their monstrous V8 actually produces plenty of heat. All that hot coolant needs a place to go, and unfortunately, Chrysler didn’t have aesthetics in mind when it came to the expansion tank, as we went over in our last post. Lucky for you, we have a better idea on how to dress up your engine bay.

_MG_6051

It might have been a little over a year since I started to drift to the dark side after rumbling across the Delaware Memorial Bridge and into our R&D facility in the B5 blue Charger to start on this project, but that doesn’t mean we took any time off. The plan is simple. Create a fresh, new coolant reservoir tank that looks more at home next to the 5.7L or mega 6.4L V8s, all while improving the durability and increasing fluid capacity. The first step to all of this, though, is making sure that our planned design fits properly.

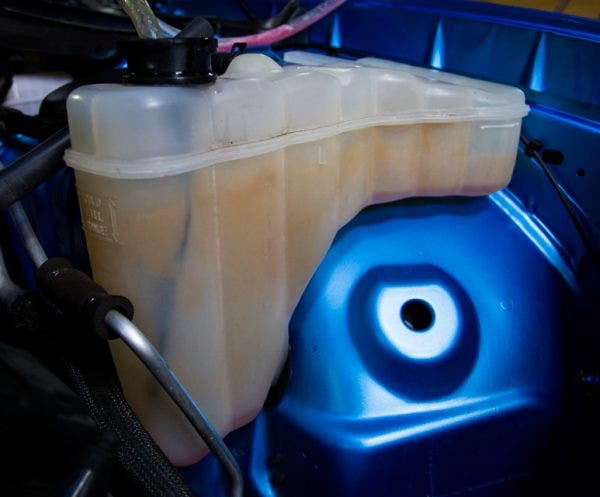

It might not look the best, but the stock tank fits like a glove under the hood. We want to make sure ours does the same.
It might not look the best, but the stock tank fits like a glove under the hood. We want to make sure ours does the same.

We started by bringing our initial design to life as a 3D print, using our Faro Scan Arm to get us there, but modeling software can only get us so far. To ensure that we’re delivering top-notch components for your Mopar, we created a tangible representation of our initial design to install on the B5 blue Charger R/T.

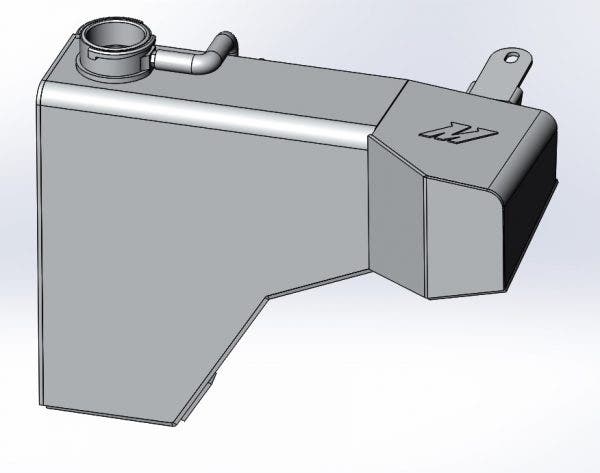

Using the scan data from our engineer is able to design a 3D model from which our prototypes can be fabricated.
Using the scan data from our engineer is able to design a 3D model from which our prototypes can be fabricated.

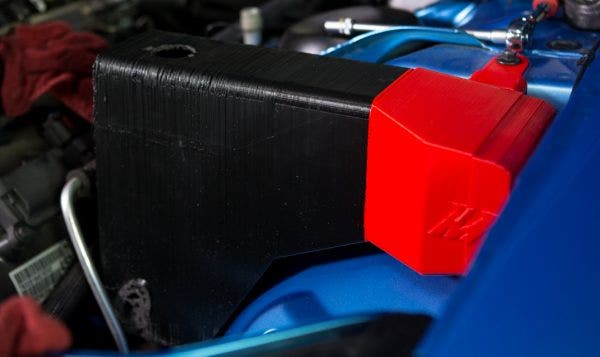

This tank might not hold any fluid, but it's the first chance we have to check out the fitment of our new design. From here we're able take measurements to make any necessary adjustments and ensure a perfect fit into your Mopar.
This tank might not hold any fluid, but it’s the first chance we have to check out the fitment of our new design. From here we’re able take measurements to make any necessary adjustments and ensure a perfect fit into your Mopar.

From our plastic printout, we were able to take measurements to make sure our design nestles in the engine bay as if it came from the factory. We even took our fitment testing a step further with this tank. Since the design of the 2011+ Charger’s and Challenger’s expansion tank is a bit more on the complex side, plus the tolerances on the 3D printer are a little more precise than bending metal, we had our master fabricator piece together our tank’s design from scratch.

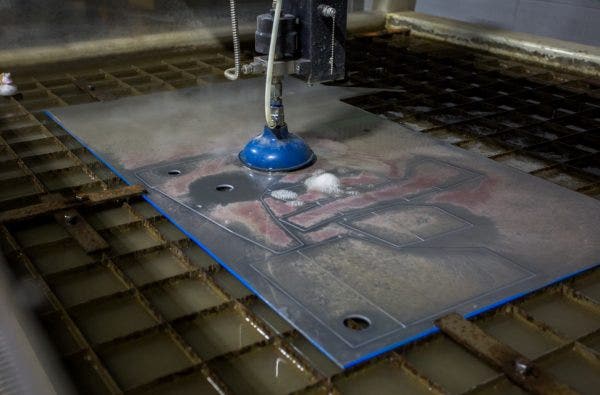

Our tank starts as a flat piece of metal. Using our water jet, we can cut the pieces for an expansion tank 3D puzzle.
Our tank starts as a flat piece of metal. Using our water jet, we can cut the pieces for an expansion tank 3D puzzle.

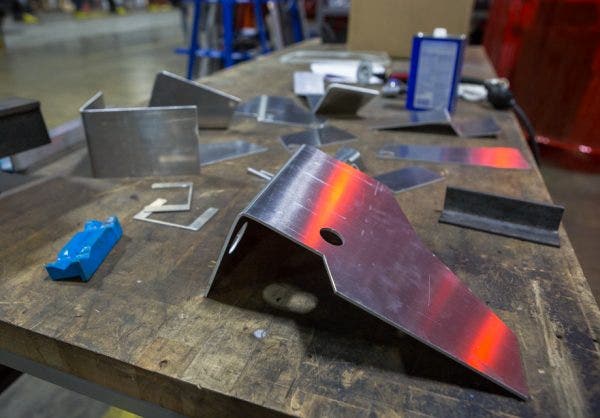

After the sections are cut, Mike uses a hydraulic press to form each piece into its specific shape.
After the sections are cut, Mike uses a hydraulic press to form each piece into its specific shape.

022218_NLT_LX_RT_WEB_4

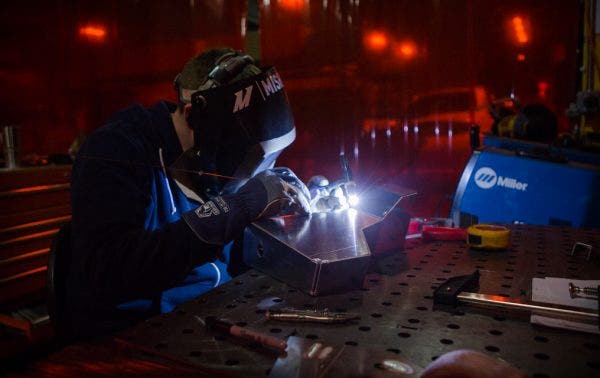

After all of the sections are bent to spec and TIG-welded together, we have ourselves an aluminum fitment prototype that we can install in our 15+ Charger.
After all of the sections are bent to spec and TIG-welded together, we have ourselves an aluminum fitment prototype that we can install in our 15+ Charger.

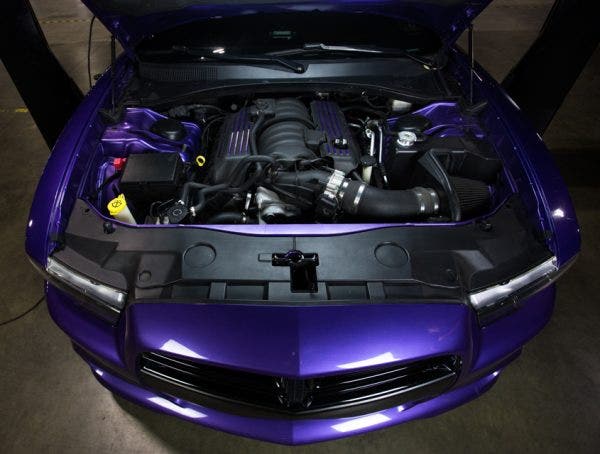

Armed with the knowledge that our intricate Mopar tank is more than feasible, and fits like a glove, we went right into mass production in order to improve the styling and durability of your LX chassis Charger/Challenger. Where both of these modern Mopars might have scorching hot looks that are hard to contain, we here at Mishimoto devised the best way to contain your hot coolant while adding to the aesthetic of your engine bay.

072018_NLT_MOP_RT_WEB_10

072018_NLT_MOP_RT_WEB_9

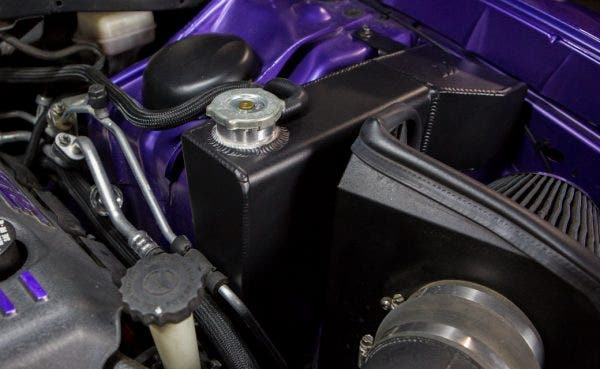

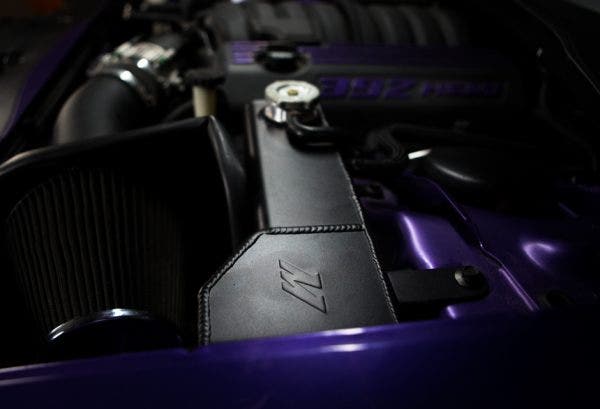

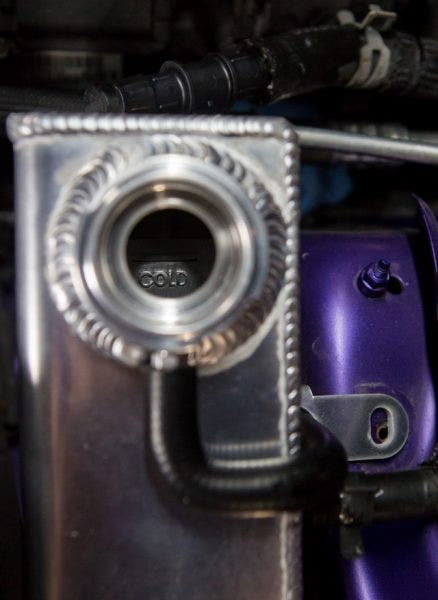

Not only will our expansion tank be available in a natural, easily powder-coated finish, we came up with a creative solution to keep the exterior of our tank looking extra sleek. Incorporated into the internal baffles is a cold fill tab where you can easily check the fluid level without the need for a sight glass or tube.
Not only will our expansion tank be available in a natural, easily powder-coated finish, we came up with a creative solution to keep the exterior of our tank looking extra sleek. Incorporated into the internal baffles is a cold fill tab where you can easily check the fluid level without the need for a sight glass or tube.

072018_NLT_MOP_RT_WEB_8

Thanks for Reading!

-Nick
