History of Success – Baffled Oil Catch Can R&D: Production

The old idiom “history repeats itself” is often used to point out the failures of the past, but in the context of the Ford F-150, that history is one of success. In recent years, Ford has been successful in introducing innovative technologies and ideas to the F-150 while retaining its renowned capability. Ford did face some skepticism in 2011 when they introduced the F-150 coupled to a direct-injected and turbocharged 3.5L V6 EcoBoost engine. But, 8 years later, the F-150 is still the best-selling truck in America and, as of 2017, the EcoBoost platform makes up 65% of all F-150’s sold.

For the 2017 model year, Ford added even more innovation to the 3.5L EcoBoost in the form of dual-injection. Instead of just injecting fuel directly into the cylinder like its predecessor, the 2nd-generation 3.5L combines the power and efficiency of direct-injection with the smooth idle of port-injection. The added port injectors also have the benefit of washing the back of the intake valves to help prevent carbon buildup.

At Mishimoto, we also have a history of success, especially when it comes to protecting the EcoBoost line of engines from blow-by. That’s why we wanted to develop a catch can to continue protecting the 2nd-generation 3.5L EcoBoost. You might think that the 2nd-gen 3.5L’s port-injection removes the need for a catch can, but there’s more to the effects of blow-by than just carbon buildup.

When we developed our 2011–2014 and 2015–2016 3.5L catch cans, we found that the engine was consuming over 100 ml of oil in 1,000 miles. That much oil in a new engine is enough cause knock, and as the EcoBoost ages, more and more blow-by will make its way past the rings. The 3.5L EcoBoost was designed to run on fuel, not blow-by, so keeping the blow-by out of the engine is just as important for the dual-injected 3.5L as it was for its predecessor. This is especially true for the Raptor or if you tow often, where the 3.5L is pushed closer to its limits.

To develop our 2017+ F-150/Raptor 3.5L EcoBoost catch can kit, we looked back at our 2015–2016 kit. Luckily, the firewall of the 2017+ F-150 hasn’t changed since we developed our 2015–2016 catch can, so our bracket and cans still fit. But there was some work to be done on the lines. Three out of our four catch can lines would still fit the 2017+ 3.5L, but the fourth, and most important line, would not.

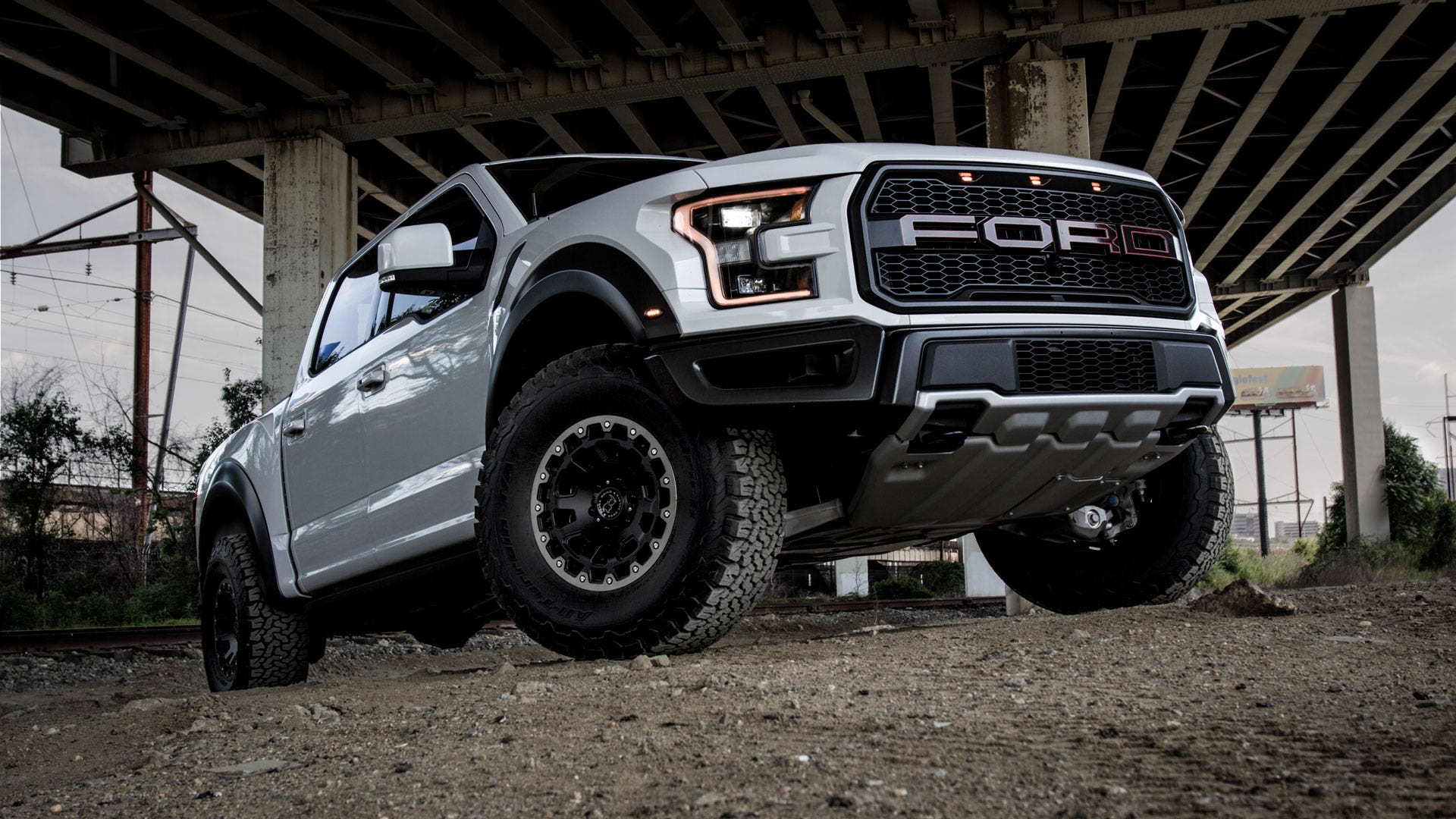

The line that holds the CCV pressure sensor changed with the 2017 revamp and we knew from our past projects that making any changes to this line could trip a CEL. Even the distance between the sensor and the engine can affect the sensor’s reading. We carefully redesigned the catch can line to mimic the stock line as much as possible. We installed the kit on our volunteer Raptor and fired it up.

To our relief, the CEL stayed off and our volunteer Raptor drove away protected from blow-by. With that, our 2017+ Ford F-150/Raptor 3.5L EcoBoost catch can kit was complete and ready for pre-sale. That means now is your chance to protect your 2nd-gen 3.5L EcoBoost from dangerous blow-by and share in a history of success. Check out our website for more details and, as always, let us know what you think.

Thanks for reading,
-Steve

6 thoughts on “History of Success – Baffled Oil Catch Can R&D: Production”

  1. The problem with all the catch can is that they set off the CEL for the CCV sensor that is in line with the turbo on the driver side. Will your do the same ? How did you remedy that problem?

    1. Hi Eddie,

      Our catch can kit does not throw a CEL for the CCV pressure sensor. When we developed our 2015-2016 3.5L F-150 catch can kit, we remedied this issue by moving the sensor to the outlet line of the catch can. We did the same for this 2017+ kit and the final product has been running on our R&D vehicle for several months without any issues.

      Thanks!
      -Steve

  2. Why was this only out for such a short period? What happen? I don’t check the forums daily, as I have a busy schedule.

    Came upon your post on f150forum.com and was interested. Sucks it’s not available anymore.

    1. Hi Henry,

      We only offer pre-sale discounts for a limited time before the product is inventoried at our warehouse – typically 3-4 weeks from the launch of the pre-sale. This catch can is still available, and is actually still discounted on our website, just not at the lower pre-sale price: Mishimoto 2017+ Ford F-150/Raptor Catch Can Kit

      Thanks,
      -Steve

  3. The problem with the CCV pressure sensor is that is extremely sensitive and overtime when you get on the gas, i.e going on the on ramps, overtaking, WOT etc, the with set off the CEL because of the vacuum drop. As long as you don’t go WOT or suddenly on the gas, you’re fine. I noticed when I ease on the gas going onto the on ramps or passing other cars, the CEL will not come on. Have your R&D vehicle try that yet?

    1. Hi Eddie,

      We have tested this catch can kit in a variety of load ranges and everyday driving situations, including WOT pulls and sudden tip-in throttle, without any CEL. Moving the sensor to the outlet line causes the sensor to see the same values it would with a stock system.

      Thanks,
      -Steve
