Time for the fun part of development, product testing! Since this is an intercooler, we would certainly need to put the WRX on the dyno for some pulls and data collection. It would be interesting to see how the installation of a front-mount system has an impact on turbo spool, intake temperatures, and perhaps even power output.

Testing Preparation

The first step toward data collection is to prepare our sensor bungs and install our pressure and temperature sensors. We installed our bungs within the inlet and outlet intercooler couplers.

Sensor bungs installed for dyno testing

Sensor bungs installed for dyno testing

Sensor bungs installed for dyno testing

Dyno Testing

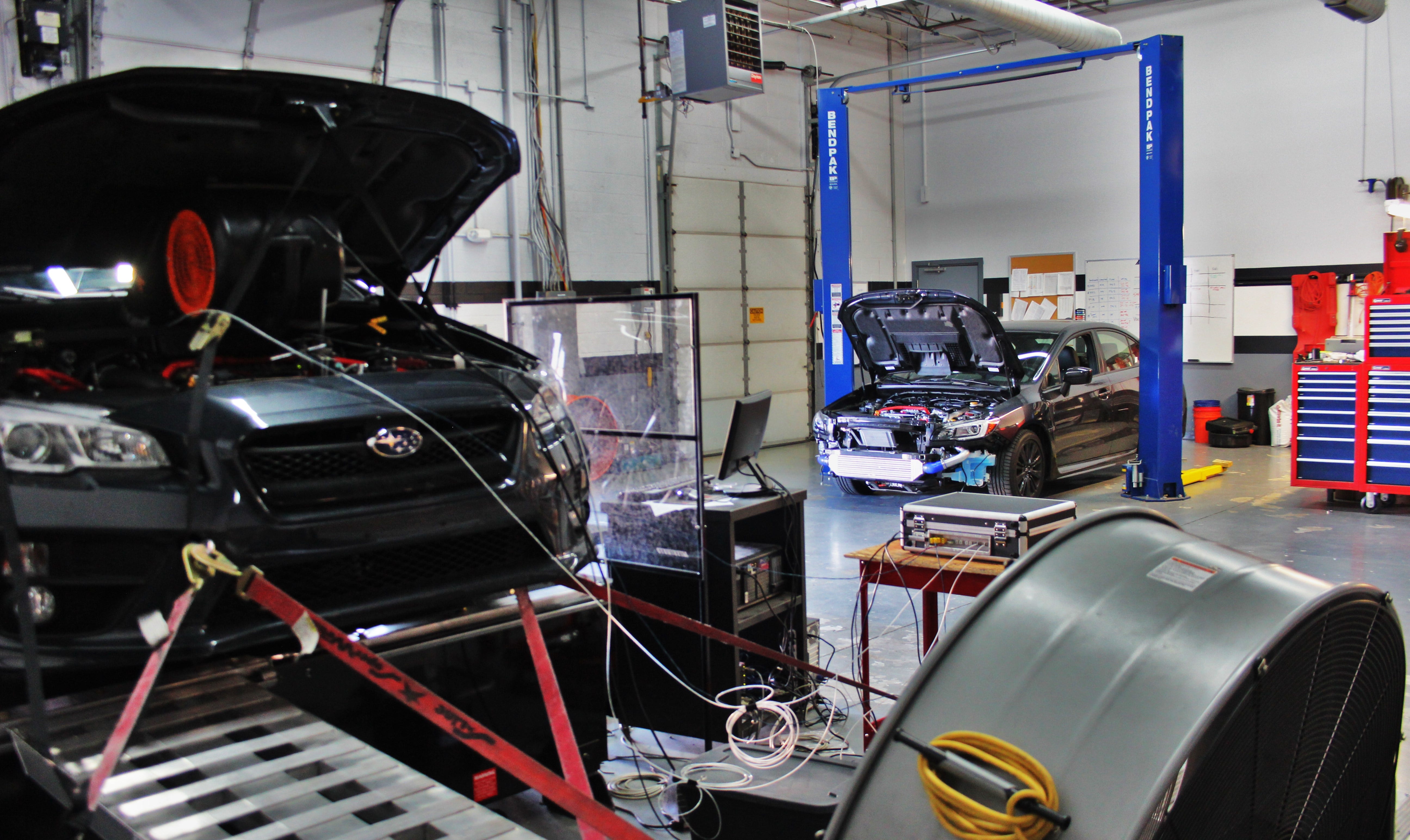

Once complete we strapped the WRX to the dyno and started making our pulls! Check out the images and video from our tests!

Front-mount intercooler dyno testing

Front-mount

Interested in picking up our 2015 WRX FMIC kit? Check out more details on our product page linked below!

Mishimoto Subaru WRX Front-Mount Intercooler Kit

Front-mount intercooler installed

In the last portion of this series we completed the fabrication of our prototype intercooler core and tanks, as well as our new bumper beam. We now had everything in place to construct a piping kit that would route air from the turbocharger to the intercooler and back to the engine.

Hot-Side Piping

We started our piping with the hot-side of the intercooler system. The stock compressor housing uses a two-bolt flange connection, similar to what you would see on a 2008-2014 WRX. As you probably know, the FA20 turbocharger is on the lower front area of the engine, essentially right below the drive belt system. Because of this, our piping for the hot-side would be significantly shorter compared to the traditional turbo location featured on the EJ engine.

We started by 3D printing the flange that connects to
