Intake Elbow, fits Ford 6.0L Powerstroke 2003-2007
- Direct fit for the 2003-2007 Ford 6.0 Powerstroke
- Made from 5052 aluminum tubing for smooth airflow and high strength
- Easy installation, installs in less than 30 minutes
- Fits with stock and Mishimoto intercooler pipes
- Includes two raised ports for sensors or injection nozzles
- Includes new rubber O-ring, specified for high boost pressures
- Includes new Duracore™ boot and Mishimoto Constant-Tension T-bolt Clamps
- Available with a polished, wrinkle black, or wrinkle blue finish
- Mishimoto Lifetime Warranty
PRODUCT FEATURES
- Direct fit for the 2003-2007 Ford 6.0 Powerstroke
- Made from 5052 aluminum tubing for smooth airflow and high strength
- Easy installation, installs in less than 30 minutes
- Fits with stock and Mishimoto intercooler pipes
- Includes two raised ports for sensors or injection nozzles
- Includes new rubber O-ring, specified for high boost pressures
- Includes new Duracore™ boot and Mishimoto Constant-Tension T-bolt Clamps
- Available with a polished, wrinkle black, or wrinkle blue finish
- Mishimoto Lifetime Warranty
Description
Purchase Includes
(1) Silicone boot with Duracore Technology
(2) 3.25-in Constant-Tension T-bolt Clamps
(1) O-ring gasket
Mounting Hardware
Mishimoto Lifetime Warranty
Notes
For 2003-2004 models, the engine's throttle body assembly must be removed from the intake manifold prior to installing this product, specific engine tuning will be needed once this throttle body assembly is removed.
| Applications | 2003-2007 Ford F-250 w/ 6.0L Powerstroke 2003-2007 Ford F-350 w/ 6.0L Powerstroke 2003-2007 Ford F-450 w/ 6.0L Powerstroke 2003-2007 Ford F-550 w/ 6.0L Powerstroke |
|---|---|
| Note | 2003.5-2004 models will require aftermarket engine tuning to use this product For 2003-2004 models, the engine's throttle body assembly must be removed from the intake manifold prior to installing this product, specific engine tuning will be needed once this throttle body assembly is removed. |
Interested in purchasing our 6.0L intake elbow?
We have quite a bit going on with this project! Our discounted pre-sale has launched, and we are currently accepting orders. In addition, our final prototype elbows arrived and have been test fitted to ensure appropriate fitment. Without further delay, let's take a look at our finished intake elbows.
Final Product Images
First, a lineup of the stock elbow next to our three finish options.
Stock 6.0 intake elbow (left) and three Mishimoto intake elbows, final prototypes
Interested in purchasing our 6.0L intake elbow?
We're back with another update on our 6.0L Powerstroke intake elbow project! Last time we covered the stock unit and noted the plans we had for our rendition of the intake elbow. After collecting data from the stock piece, we began mapping our prototypes on 3D-modeling software.
Prototype 1
Our first prototype comes by way of the almighty 3D printer. We made a quick design in Solidworks to map out the appearance and dimensional constraints for our design.
Mishimoto 6.0L Powerstroke intake elbow prototype 1
Interested in purchasing our 6.0L intake elbow?
If you are familiar with our brand, you know we have a vast product line of heat exchangers and associated products available for the Ford 6.0L Powerstroke. We've had great feedback from our customers about our existing products as well as the new products they would like to see come out of our garage. Now that we have our own 6.0L shop truck (shown below), we have easy access to a vehicle for product development and test fitting.

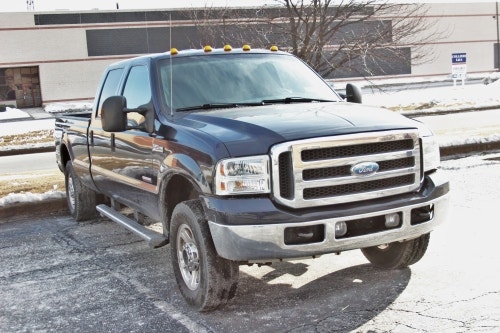

Mishimoto 6.0L shop truck
We decided to come up with our own rendition of an inexpensive, free-flowing intake elbow for the 6.0L. Yes, we realize there are ample options currently on the market. That said, we would like our design
