Universal Piping Matrix
| MMICP-AL-2250 |
2.25" (57.15 mm) |
T6063 Aluminum |
Straight |
1.8 mm |
0.0709" |
600 mm |
23.62" |
- |
- |
Polished |
| MMICP-AL-2259 |
2.25" (57.15 mm) |
T6063 Aluminum |
90° |
1.8 mm |
0.0709" |
600 mm |
23.62" |
3.5" |
9" |
Polished |
| MMICP-AL-2251 |
2.25" (57.15 mm) |
T6063 Aluminum |
180° |
1.8 mm |
0.0709" |
300 mm |
11.81" |
3.5" |
7.1" |
Polished |
| MMICP-AL-250 |
2.5" (63.5 mm) |
T6063 Aluminum |
Straight |
1.8 mm |
0.0709" |
600 mm |
23.62" |
- |
- |
Polished |
| MMICP-AL-251 |
2.5" (63.5 mm) |
T6063 Aluminum |
180° |
1.8 mm |
0.0709" |
300 mm |
11.81" |
3.9" |
6.6" |
Polished |
| MMICP-AL-2750 |
2.75" (69.85 mm) |
T6063 Aluminum |
Straight |
2 mm |
0.0787" |
600 mm |
23.62" |
- |
- |
Polished |
| MMICP-AL-2759 |
2.75" (69.85 mm) |
T6063 Aluminum |
90° |
2 mm |
0.0787" |
600 mm |
23.62" |
4.3" |
8.4" |
Polished |
| MMICP-AL-2751 |
2.75" (69.85 mm) |
T6063 Aluminum |
180° |
2 mm |
0.0787" |
300 mm |
- |
4.3" |
- |
Polished |
| MMICP-AL-30 |
3" (76.2 mm) |
T6063 Aluminum |
Straight |
1.8 mm |
0.0709" |
600 mm |
23.62" |
- |
- |
Polished |
| MMICP-AL-39 |
3" (76.2 mm) |
T6063 Aluminum |
90° |
1.8 mm |
0.0709" |
600 mm |
23.62" |
4.7" |
8.1" |
Polished |
| MMICP-AL-31 |
3" (76.2 mm) |
T6063 Aluminum |
180° |
2 mm |
0.0709" |
300 mm |
- |
- |
- |
Polished |
| MMICP-AL-40 |
4" (101.6 mm) |
T6063 Aluminum |
Straight |
2 mm |
0.0709" |
600 mm |
23.62" |
- |
- |
Polished |
| MMICP-AL-41 |
4" (101.6 mm) |
T6063 Aluminum |
180° |
2 mm |
0.0709" |
300 mm |
11.81" |
6.5" |
3.3" |
Polished |
| MMICP-SS-151 |
1.5" (38 mm) |
SS304 |
180° |
1.5 mm |
0.0591" |
300 mm |
11.81" |
2.4" |
8.7" |
Raw |
| MMICP-SS-1751 |
1.75" (44.45 mm) |
SS304 |
180° |
1.5 mm |
0.0591" |
300 mm |
11.81" |
2.8" |
8.2" |
Raw |
| MMICP-SS-21 |
2" (51 mm) |
SS304 |
180° |
1.5 mm |
0.0591" |
300 mm |
11.81" |
3.1" |
7.7" |
Raw |
| MMICP-SS-250 |
2.5" (63.5 mm) |
SS304 |
Straight |
1.5 mm |
0.0591" |
600 mm |
23.62" |
- |
- |
Raw |
| MMICP-SS-259 |
2.5" (63.5 mm) |
SS304 |
90° |
1.5 mm |
0.0591" |
600 mm |
23.62" |
3.9" |
8.7" |
Raw |
| MMICP-SS-251 |
2.5" (63.5 mm) |
SS304 |
180° |
1.5 mm |
0.0591" |
300 mm |
11.81" |
3.9" |
6.6" |
Raw |
| MMICP-SS-30 |
3" (76.2 mm) |
SS304 |
Straight |
1.5 mm |
0.0591" |
600 mm |
23.62" |
- |
- |
Raw |
| MMICP-SS-39 |
3" (76.2 mm) |
SS304 |
90° |
1.5 mm |
0.0591" |
600 mm |
23.62" |
4.7" |
8.1" |
Raw |
| MMICP-SS-31 |
3" (76.2 mm) |
SS304 |
180° |
1.5 mm |
0.0591" |
300 mm |
11.81" |
4.7" |
5.6" |
Raw |
| MMICP-SS-25U |
2.5" (63.5 mm) |
SS304 |
U-J Bend |
1.5 mm |
0.0591" |
Chart Below |
Chart Below |
- |
Chart Below |
Raw |
| MMICP-SS-3U |
3" (76.2 mm) |
SS304 |
U-J Bend |
1.5 mm |
0.0591" |
Chart Below |
Chart Below |
- |
Chart Below |
Raw |

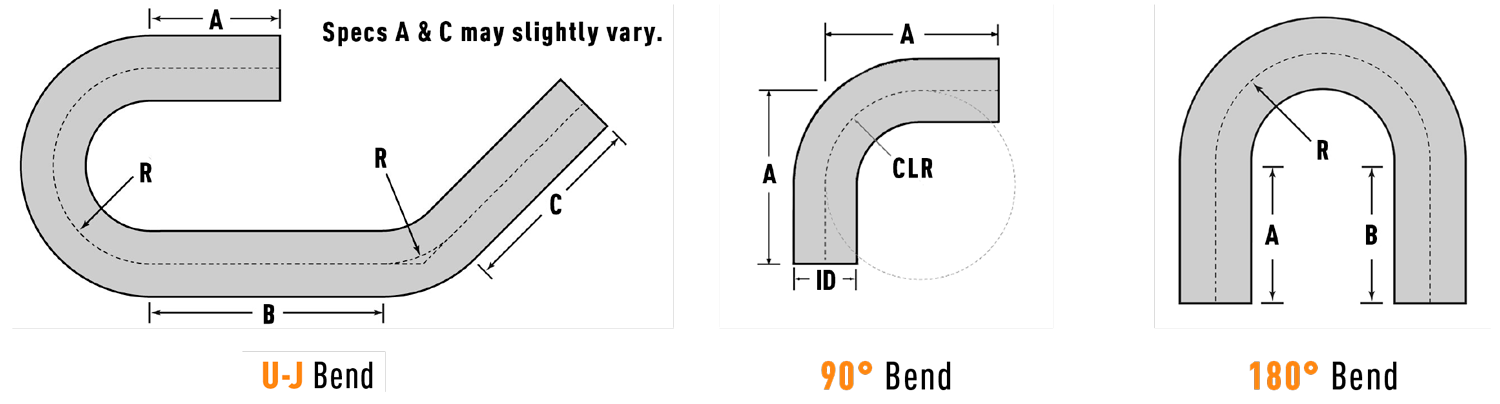

U-J Bend Chart
| 2.5" (63.5 mm) |
5.0" (127 mm) |
10" (254 mm) |
10" (254 mm) |
24" (610 mm) |
| 3.0" (76.2 mm) |
7.0" (177.8 mm) |
15" (381 mm) |
12" (304.8 mm) |
33" (838.20 mm) |
