Half-Size Performance Aluminum Radiator, fits Mitsubishi Lancer Evolution 7/8/9 2001-2007
Half-Size Performance Aluminum Radiator, fits Mitsubishi Lancer Evolution 7/8/9 2001-2007
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct fit for the 2001-2007 Mitsubishi Lancer Evolution
- Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
- All-aluminum construction with TIG-welded end tanks
- 2.05-in thick brazed aluminum core provides optimal cooling and superior durability
- Internal baffle provides exceptional fluid dispersion throughout the core and optimal cooling efficiency
- Applicable for use with stock or Mishimoto silicone radiator hoses
- Includes mounting points for stock fan shroud
- Includes magnetic drain plug with dowty seal, 1.3 bar high-pressure radiator cap, and upper radiator aluminum stay
- Mishimoto Lifetime Warranty
Installation Difficulty: Medium
- Direct fit for the 2001-2007 Mitsubishi Lancer Evolution
- Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
- All-aluminum construction with TIG-welded end tanks
- 2.05-in thick brazed aluminum core provides optimal cooling and superior durability

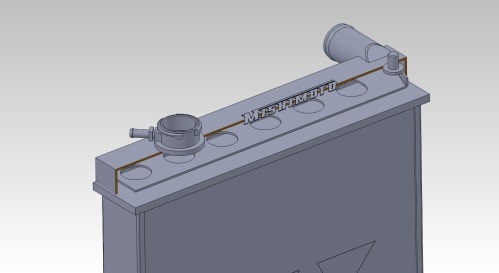

- Internal baffle provides exceptional fluid dispersion throughout the core and optimal cooling efficiency
- Applicable for use with stock or Mishimoto silicone radiator hoses
- Includes mounting points for stock fan shroud
- Includes magnetic drain plug with dowty seal, 1.3 bar high-pressure radiator cap, and upper radiator aluminum stay
- Mishimoto Lifetime Warranty
Product Description
This radiator is engineered to retain stock fitment for the Mitsubishi Evolution 7, 8, and 9 for hassle-free bolt-in fitment. With a core thickness of nearly 2 inches, this radiator dwarfs the factory heat exchanger and is perfect for use with vehicles utilizing upgraded turbochargers or for stock vehicles in need of a reliable replacement. This performance radiator includes a Mishimoto 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of coolant to create a safer and more efficient system. This radiator also includes a magnetic drain plug with dowty seal, which removes circulating metal fragments from the cooling system, providing further engine protection. As with all our products, this aluminum radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
TECH SPECS
| Overall Height (in) | 19.4 |
|---|---|
| Overall Length (in) | 14 |
| Overall Width (in) | 4.4 |
| Core Length (in) | 13.38 |
| Core Height (in) | 15 |
| Fluid Capacity (gal) | 1.79 |
| Rows | 3 |
| Inlet (in) | 1.38 |
| Outlet (in) | 1.38 |
| Core Thickness (in) | 2.05 |
| Drain Plug Thread Size | M12 |
| Engine Codes | 4G63 |
| Chassis Codes | CT9-A |
| Coolant Capacity | 1.79 |
Compatible Vehicles
Purchase Includes
Mishimoto Radiator Cap
Magnetic Drain Plug
Upper Radiator Aluminum Stay
Mishimoto Lifetime Warranty
Interested in purchasing our Evolution intercooler? Check out our product page for more details!
Mishimoto Mitsubishi Lancer Evolution 7/8/9 Race Intercooler

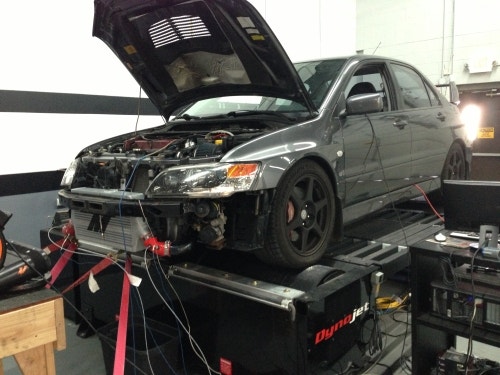

And we are back! Enough drooling over our large core, cast tanks, and slick powder-coated finish. It was time to put these coolers to work. If you recall from the previous post, our fantastic engineer Steve is the proud owner of the super clean Evolution 9 you see below. Steve agreed to donate his vehicle for testing, which eliminated the process of tracking down a local Evo that would fit our requirements.

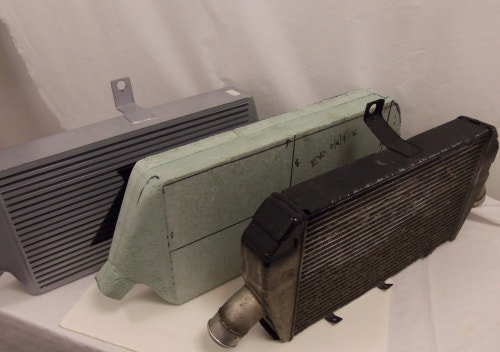

Mishimoto prototype intercooler
Interested in purchasing our Evolution intercooler? Check out our product page for more details!
Mishimoto Mitsubishi Lancer Evolution 7/8/9 Race Intercooler
The Mitsubishi Lancer Evolution ticks all the necessary boxes to make it a legendary and unforgettable sedan that continues to be competitive on and off the tarmac. Mitsubishi has always had a way of triggering the enthusiast in their consumers, by producing unique vehicles for people who are looking for more than typical transportation. I spent a fair amount of my youth drooling over the body lines of Starquests, the immense power of DSMs, and the absolutely ridiculous 3000GT VR4. The Evo really was the compilation of everything great about Mitsubishi. For these unique vehicles oozing with character, we can only thank Mitsubishi and plead for its return to vehicle design based more on insanity and spirit, and less on the general consumer's
Interested in purchasing our Evolution radiator? Check out our product page for more details!

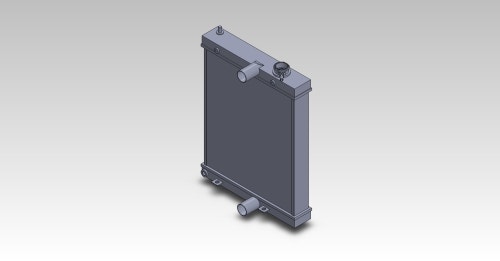

Mitsubishi Lancer Evolution Half-Size Performance Aluminum Radiator
With our design essentially solidified, and our prototypes ready to be put into action, it was time to perform another test fit and gather data. Lucky for us, one of our new engineers (Steve) happens to daily drive an Evo 9, and we talked him into allowing us to use his car for development. Steve's Evo is making around 350 hp to the wheels with a few modifications and quite a helping of boost. This should be a great vehicle for our second round of testing.
Test fit
Interested in purchasing our Evolution radiator? Check out our product page for more details!
Mitsubishi Lancer Evolution Half-Size Performance Aluminum Radiator
Our initial test fit donor vehicle
It is hard to argue with the masses who rave about the Mitsubishi Lancer Evolution. A turbocharged, AWD, rally-inspired chassis wrapped in a tastefully designed and aggressive body is enough to provoke envy in anyone, enthusiast or not.
During the past few years, we’ve kept a close eye on the Evolution forums and enthusiast groups, and we’ve also kept tabs on the success of our current
