Intercooler, Stock Location, Fits 2021+ Ford Bronco 2.3L/2.7L

Model
MMINT-BR-21
As low as $674.96 Regular Price $833.28
Only %1 left
-
+
Add to Wish List

$Login or create an account to earn 674 pts on this product.
Key Features
Features
  • Direct fit for 2021+ Ford Bronco 2.3L and 2.7L EcoBoost
  • Dyno-proven max gains of 5.7 wheel-horsepower and 5.3 lb-ft of torque (2.3L EcoBoost)
  • 21.2F reduction in outlet temperature over stock intercooler (2.3L EcoBoost)
  • 7-percent less restrictive than stock intercooler
  • 77-percent increase in core volume
  • 175-percent increase in fin surface area
  • 4.7-in thick intercooler design for maximum flow
  • Optimal core design for maximum cooling efficiency with minimal pressure drop
  • All-aluminum, TIG-welded construction
  • Durable bar-and-plate core for superior durability and performance
  • Cast aluminum end tanks are precision TIG welded to the core for increased pressure tolerance and reliability
  • CNC-machined 6061 aluminum inlet and outlet flanges
  • Does not interfere with adaptive cruise control or 360 cameras
  • Available in stealth black or sleek silver powdercoat
  • Mishimoto Lifetime Warranty

Installation Difficulty: Medium

Key Features
  • Direct fit for 2021+ Ford Bronco 2.3L and 2.7L EcoBoost
  • Dyno-proven max gains of 5.7 wheel-horsepower and 5.3 lb-ft of torque (2.3L EcoBoost)
  • 21.2F reduction in outlet temperature over stock intercooler (2.3L EcoBoost)
  • 7-percent less restrictive than stock intercooler
  • 77-percent increase in core volume
  • 175-percent increase in fin surface area
  • 4.7-in thick intercooler design for maximum flow
  • Optimal core design for maximum cooling efficiency with minimal pressure drop
  • All-aluminum, TIG-welded construction
  • Durable bar-and-plate core for superior durability and performance
  • Cast aluminum end tanks are precision TIG welded to the core for increased pressure tolerance and reliability
  • CNC-machined 6061 aluminum inlet and outlet flanges
  • Does not interfere with adaptive cruise control or 360 cameras
  • Available in stealth black or sleek silver powdercoat
  • Mishimoto Lifetime Warranty

Product Description

The Ford Bronco has a heritage of tough, go-anywhere capability. The 2021+ Bronco is no different and deserves a cooling system that can stand up to the task. Here at Mishimoto, we never back down from a challenge, so we developed a performance intercooler to let your 2.3L or 2.7L EcoBoost breathe in the coolest, densest air possible to help improve performance and overall efficiency of heat dissipation, along with being strong enough to handle anything the trail can put in your way.

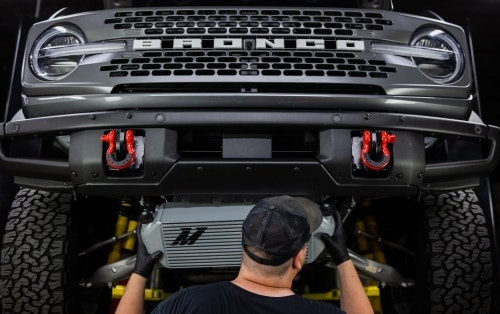

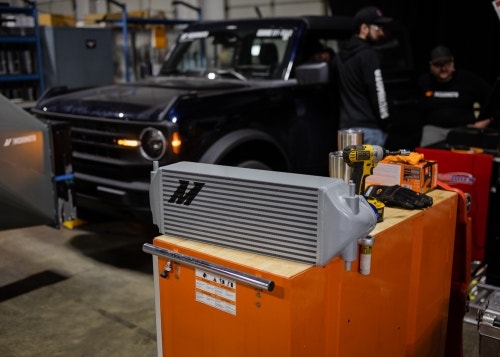

The Mishimoto Performance Intercooler features a 4.7-inch thick core, CNC-machined 6061 aluminum flanges, and precision TIG-welded cast-aluminum end tanks. Combined, this makes for an intercooler that is as robust and ready to take on the world as the Bronco it's designed for. Compared to the factory tube-and-fin intercooler with plastic end tanks, durability against heat, pressure, and debris on the road or trail is significantly improved over stock. More durability is always a good thing, but it's even better when it's backed up with performance.

The Mishimoto Performance Intercooler has an increase of 77-percent core volume and 175-percent fin surface area, which for the 2.3L EcoBoost, results in a reduction of outlet temperatures of 21.2-degrees over stock, and for the 2.7L EcoBoost, a reduction of outlet temperatures of 15.8-degrees over stock. Both the 2.3L and 2.7L EcoBoost also benefit from an increase in flow of 7-percent.

All of this combined generates gains of 5.68 whp and 5.32 lb-ft of torque for the 2.3L EcoBoost and 6.5 whp and 6.5 lb-ft of torque for the 2.7L EcoBoost.

These numbers are all well and fine, but what they really mean is that in the real world, whether sitting in traffic or out on the trails, you'll see improvements in performance. We saw an especially good improvement in our trail simulation heat-soak testing where, after 6 back-to-back dyno runs, we still saw outlet temperatures 20-degrees cooler than stock.

All functionality of adaptive cruise control and 360-degrees cameras are retained.

As with all of our products, the Mishimoto Performance Intercooler is backed by our signature Mishimoto Lifetime Warranty.
Read more

TECH SPECS

More Information
Release Date Sep 30, 2022, 8:55:30 AM
Best Selling 3
Popularity 125
Applications Ford Bronco I4 2.3L 2021+
Ford Bronco V6 2.7L 2021+
Engine Codes 2.3L EcoBoost
2.7L EcoBoost
Note
Does not fit Raptor Bronco with 3.0L EcoBoost

Installation on 2.7L vehicles with a rear fan shroud will cause some of the rear fan shroud flaps to not open fully. This will not cause any issue with vehicle performance or operation.
Overall Length (in) 26.81
Overall Width (in) 6.77
Core Length (in) 19.49
Core Height (in) 7.62
Inlet (in) 2.48
Outlet (in) 2.48

Downloads

Downloads
Buyer Guides
Installation Guides
pdf
(Size: 1.1 MB)
Installation Guides
Engineering Report

Purchase Includes

Note:

Does not fit Raptor Bronco with 3.0L EcoBoost

Installation on 2.7L vehicles with a rear fan shroud will cause some of the rear fan shroud flaps to not open fully. This will not cause any issue with vehicle performance or operation.
