Nissan Titan XD 5.0L Cummins Intercooler, 2016+

Engineering
Engineering
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
Nissan Titan XD 5.0L Cummins Intercooler, 2016+
$1,300.00
Reward Points You will earn 1300 Points for purchasing this product.
Installation Difficulty

Add to Build List
  • Direct fit for the 2016+ Nissan Titan XD
  • Intercooler features all-aluminum cast end tanks
  • Reduces turbo stress and extends life
  • Intercooler available in Sleek Silver and Stealth Black
  • Fits with Mishimoto Performance Aluminum Radiator
  • 42% increase in core volume over stock
  • 45% increase in external fin surface area
  • Mishimoto Lifetime Warranty

Cummins engines are well known for their smooth power delivery and engine longevity. Mishimoto has released an intercooler for the 2016+ Nissan Titan XD that is built to last, just like your truck. The Mishimoto 2016+ Nissan Titan XD intercooler is manufactured with robust cast aluminum end tanks and a dense bar-and-plate core. Our engineers developed an intercooler with increased core volume that can support substantial boost pressures and lower EGTs in your stock or modified truck.

The Mishimoto 2016+ Nissan Titan XD performance intercooler features larger-than-factory intercooler outlets for increased flow. Included with this intercooler are two silicone boots with DuraCore™ technology and our signature Constant Tension T-bolt Clamps for consistent and reliable holding power. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel and oil. This effectively increases the life of our boots by preventing leaks and blow-outs.

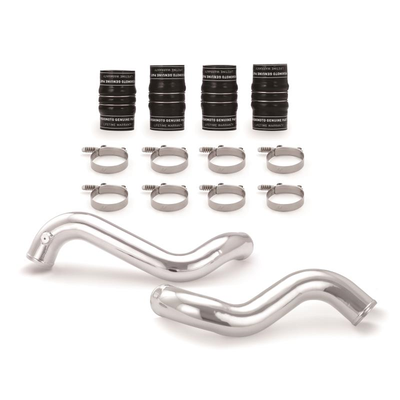

Save time and money by upgrading to the full Mishimoto 2016+ Nissan Titan XD intercooler and piping kit, which pairs this intercooler with the Mishimoto 2016+ Nissan Titan XD pipe and boot kit at a special discounted price. Whether your 2016+ Nissan Titan XD is stock or modified, trust Mishimoto and our line of 2016+ Nissan Titan XD performance parts to keep your Nissan cool. This 2016+ Nissan Titan XD performance intercooler is offered in Sleek Silver or Stealth Black, and like all of our 2016+ Nissan Titan XD performance parts, comes backed by the Mishimoto Lifetime Warranty.

Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.

TECH SPECS

Installation Torque Specs 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

Purchase Includes (1) Mishimoto Intercooler
(2) Aluminum Spacers

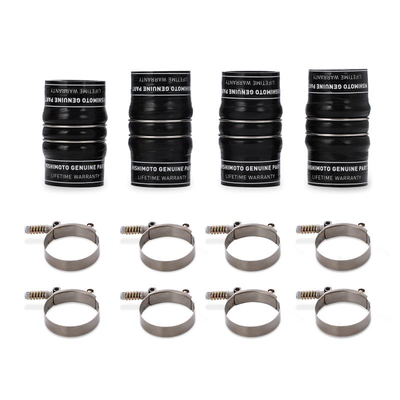

(2) Silicone Boots with DuraCore™ Technology
(4) Constant-Tension T-Bolt Clamps
Mishimoto Lifetime Warranty

Note The two aluminum spacers included with this kit are for those of you installing your Mishimoto intercooler with your stock radiator.

Core Thickness 3"

Engine Codes IS-V

Fits 2016+ Nissan Titan XD 5.0

Coating Powder Coated

Core Length 35"

Core Height 19"

Core Width 3"

Overall Height 19"

Overall Length 42"

Construction Bar-and-Plate

Engineering Blog

Cooling is Coming- Nissan Titan XD Intercooler, Part 2: Final Prototype

Cooling is Coming- Nissan Titan XD Intercooler, Part 2: Final Prototype

January 26, 2017

Preparation is an elusive concept. No matter how much time you spend getting ready, you find yourself at the event remembering everything you did not bring. Perhaps this applies more to me, the least prepared individual of all. I constantly find myself in situations where if I had prepared, I could have been ahead of … Continue reading Cooling is Coming- Nissan Titan XD Intercooler, Part 2: Final Prototype → The post Cooling is Coming- Nissan Titan XD Intercooler, Part 2: Final Prototype appeared first on Mishimoto Engineering Blog.

Read More

Cooling is Coming- Intercooler R&D, Part 1: Stock Evaluation

Cooling is Coming- Intercooler R&D, Part 1: Stock Evaluation

November 20, 2016

We have been working on the Titan XD for quite some time now. We have gone through a variety of products like the intercooler pipe kit, coolant filtration kit, and exhaust. Now we are down to the bread and butter of our Titan XD parts: the intercooler. When we begin projects, we like to start … Continue reading Cooling is Coming- Intercooler R&D, Part 1: Stock Evaluation → The post Cooling is Coming- Intercooler R&D, Part 1: Stock Evaluation appeared first on Mishimoto Engineering Blog.

Read More
