- Direct-fit for the 2016+ Mazda MX-5 Miata
- 19-row stacked-plate oil cooler drops temperatures up to 57F (29.5C)
- Minimal pressure drop
- Application-specific mounting brackets mount the oil cooler in the front bumper
- Mounting brackets made from aluminum for a lightweight design
- Pre-made stainless steel braided oil lines with durable -AN fittings
- Billet aluminum thermostatic oil sandwich plate
- Thermostatic and Non-thermostatic options available
- Cooler available in either Sleek Silver or Stealth Black
- Increases oil capacity by .75 qt
- Mishimoto Lifetime Warranty
Installation Difficulty: Medium
- Direct-fit for the 2016+ Mazda MX-5 Miata
- 19-row stacked-plate oil cooler drops temperatures up to 57F (29.5C)
- Minimal pressure drop
- Application-specific mounting brackets mount the oil cooler in the front bumper
- Mounting brackets made from aluminum for a lightweight design
- Pre-made stainless steel braided oil lines with durable -AN fittings
- Billet aluminum thermostatic oil sandwich plate
- Thermostatic and Non-thermostatic options available
- Cooler available in either Sleek Silver or Stealth Black
- Increases oil capacity by .75 qt
- Mishimoto Lifetime Warranty
Product Description
This Miata oil cooler kit features a Mishimoto 19-row stacked-plate oil cooler, which is placed directly in front of the radiator by application-specific mounting brackets for maximum air-flow. Application-specific braided stainless steel lines transfer oil from the cooler to the engine and feature -10AN fittings for an easy installation. Mishimoto engineers saw consistent temperature decreases of up to 57°F (29.5°C) using our non-thermostatic sandwich plate.
The cooler is available in a Sleek Silver or Stealth Black powdercoat finish with the choice of either the Mishimoto Thermostatic Oil Sandwich Plate or the Mishimoto Non-thermostatic Oil Sandwich Plate. As with the rest of the Mishimoto 2016 Miata parts, this oil cooler kit comes with the Mishimoto Lifetime Warranty!
TECH SPECS
| Rows | 19 |
|---|---|
| Core Length (in) | 11 |
| Core Height (in) | 5.43 |
| Core Thickness (in) | 1.97 |
| Chassis Codes | ND |
| Installation Notes | Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| Caution | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| Applications | 2016+ Mazda Miata |
| Note | Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
Compatible Vehicles
Installation Guides
Purchase Includes
19-Row Oil Cooler
3-ft, 9-in Stainless-Steel Braided Hose with Straight and 45 / 120 Degree -10AN Fittings
4-ft, 7-in Stainless-Steel Braided Hose with 45 Degree and 45 / 120 Degree -10AN Fittings

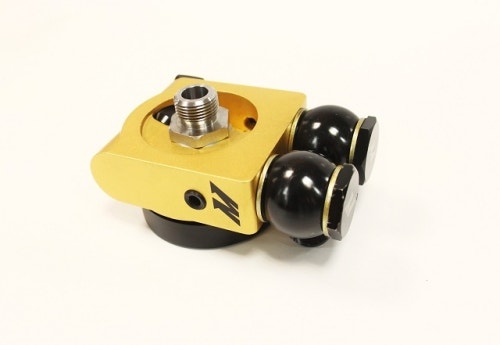

Oil Sandwich Plate
M20 Extended Length Stainless-Steel Sandwich Plate Adapter
10mm 6061 Aluminum Sandwich Plate Spacer
O-rings
Banjo Fitting w/ Bolt M20 x -10AN, Black
Mounting Hardware Set
Note:
Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lbInterested in purchasing our new ND Miata direct-fit oil cooler kit? Check out our product page linked below!
Mishimoto Mazda Miata Oil Cooler Kit!
The most exciting part of product design happens during the final stages. Product testing reveals any flaws in the design and also provides insight into possible adjustments for enhanced performance. In addition, testing validates our existing design and makes all our efforts well worth the time spent. So far, our team is having a great time developing new ND Miata parts.
Our ND Miata oil cooler kit will be no different. Since the stock vehicle with SkyActiv technology does not include a factory oil cooler system, we expect to see some pretty big decreases in fluid temperatures. On to testing the Miata oil cooler!
Testing Conditions and Instruments
As we noted in the conclusion of our last segment,
Interested in purchasing our new ND Miata direct-fit oil cooler kit? Check out our product page linked below!
Mishimoto Mazda Miata Oil Cooler Kit!
Not long ago we posted some initial details regarding plans for our direct-fit Miata oil cooler solution. We've been hard at work on our design, with hopes that our end product will provide optimal oil temperatures for track junkies.
Final Bracket Design

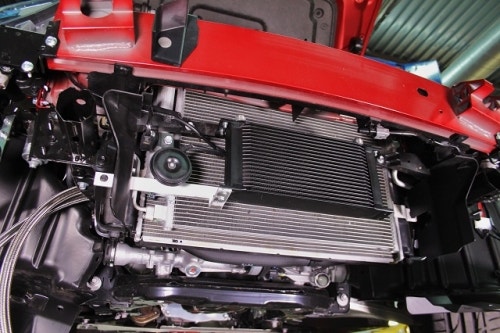

Last time, we constructed two mounting brackets for our kit. We prefer three mounting points for optimal rigidity. This Miata oil cooler is going to see quite a bit of airflow, so we want to ensure the cooler mounts can handle this force. Below is a shot of our third bracket, which ties into the passenger side of the radiator support.
Interested in purchasing our new ND Miata direct-fit oil cooler kit? Check out our product page linked below!
Mishimoto Mazda Miata Oil Cooler Kit!

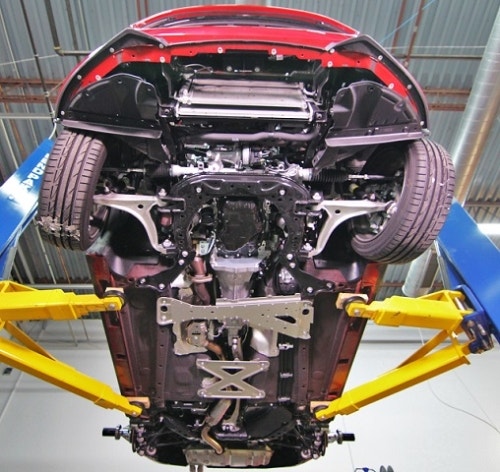

It's hard to doubt the upcoming success of the new Miata. Previous generations have provided enthusiasts with an amazing chassis that continues to dominate the racing world and bring smiles to the faces of owners around the globe. With the new model comes some weight shedding and a new power plant. Reviews from a variety of sources have revealed that Mazda did things right, just as we all figured they would. The only issue is that this model was not released sooner!
We've had our test vehicle in the shop for a few weeks now, with some exciting new product development underway. A big thank you to the vehicle owner for letting us borrow her Miata! Our intake design is coming along nicely, we have a direct-fit catch can in the works, and
