Aluminum Secondary Radiator, fits Ford 6.7L Powerstroke 2011-2016
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct fit for the 2011-2016 6.7L Powerstroke
- Reduces coolant temperatures by up to 7F
- Reduces charge air cooler temperatures by up to 6F
- Reduces transmission, fuel and EGR temperatures
- Removable thermostat housings
- 27-percent increase in fin area
- 19-percent thicker core than factory
- 16-percent increase in cooling tube surface area
- 100-percent brazed aluminum core
- TIG-welded to perfection
- Fits with factory and Mishimoto Primary radiators
- Includes magnetic oil drain plug
- Mishimoto Lifetime Warranty
Installation Difficulty: Medium
- Direct fit for the 2011-2016 6.7L Powerstroke
- Reduces coolant temperatures by up to 7F
- Reduces charge air cooler temperatures by up to 6F
- Reduces transmission, fuel and EGR temperatures
- Removable thermostat housings
- 27-percent increase in fin area
- 19-percent thicker core than factory
- 16-percent increase in cooling tube surface area
- 100-percent brazed aluminum core
- TIG-welded to perfection
- Fits with factory and Mishimoto Primary radiators
- Includes magnetic oil drain plug
- Mishimoto Lifetime Warranty
Product Description
TECH SPECS
| Overall Height (in) | 22 |
|---|---|
| Overall Length (in) | 48 |
| Core Length (in) | 39.4 |
| Core Height (in) | 21 |
| Rows | 2 |
| Core Thickness (in) | 1.96 |
| Drain Plug Thread Size | M12 x 1.5 |
| DPI | 13339 |
| Applications | 2011-2016 Ford F-250 w/ 6.7L Powerstroke 2011-2016 Ford F-350 w/ 6.7L Powerstroke 2011-2016 Ford F-450 w/ 6.7L Powerstroke 2011-2016 Ford F-550 w/ 6.7L Powerstroke |
| Coolant Capacity | 11.61 |
Downloads
Purchase Includes
(2) Cast Thermostat Housings
Magnetic Drain Plug w/ Dowty Oil Seal
(4) Rubber Bushings & Metal Collars
(3) Hardware Packs
Mishimoto Lifetime Warranty
Last time, we took a look at the unique design of the Ford 6.7 secondary Super Duty radiator and its accompanying thermostats. Our last post was only about two weeks ago, but I come bearing some good news - plus, great things come in twos.
Why does my primary rad need a companion?
As a recap, this heat exchanger, found in 2011+ Ford Super Duty trucks, works as an integral part of a mostly independent secondary cooling system that manages many of the truck's auxiliary cooling needs, including those of the liquid-to-liquid charge air cooler. Cooling these engine components more efficiently should not only prolong their useful lives, but also may make for some nice performance benefits if coupled with a tune - who doesn't love colder charge air?
The secondary system allows the primary radiator to more exclusively and efficiently cool the torquey Power Stroke motors found

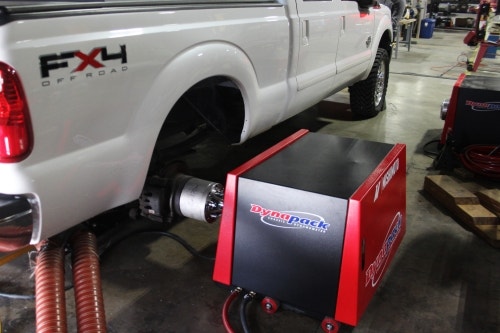

![Love Is in the [Charge] Air - Secondary Radiator R&D, Part 2: Prototype Testing and Data](https://www.mishimoto.com/media/blog/cache/500x_0/magefan_blog/2016/07/015-2-1.jpg)
Whether we're talking about turbochargers on an F-150 EcoBoost, V8 engines in an offshore powerboat, drummers in the Allman Brothers Band, or pieces of Carvel™ Ice Cream Cake for dessert on my birthday, sometimes two is a better option than one. This was very much the school of thought that Ford's engineers adopted when designing the cooling system on the 2011+ F-Series Super Duty trucks, including the F-350, F-450, and F-550. These trucks feature two systems that work in parallel to handle all of the cooling needs in your truck, and both are equally important.
Our engineers at Mishimoto also see the value in the "two can be better than one" mindset. When we bought our Mustang GT, we didn't stop there - we bought a turbo model, too. Many of you may know that we have already released a
