Cold-Side Intercooler Pipe, fits Ford Focus ST 2013-2018
MISHI POINTS INFO
Get exclusive points discounts ONLY for #TeamMishi Rewards Program account holders. Join to earn reward points on every dollar you spend at mishimoto.com. Click here for our terms and conditions.
- Direct fit for the 2013–2018 Ford Focus ST
- One-piece design for uninterrupted airflow, easy installation, and minimizing boost leaks
- 40% greater flow than stock cold-side pipe
- 10% increase in volume over stock cold-side pipe
- Elliptical shape to accommodate for larger Mishimoto radiator
- Rigid silicon construction prevents pipe movement under heavy load
- Available in black
- Mishimoto Lifetime Warranty
Installation Difficulty: Medium
CARB EO#: D-759-6 - Direct fit for the 2013–2018 Ford Focus ST
- One-piece design for uninterrupted airflow, easy installation, and minimizing boost leaks
- 40% greater flow than stock cold-side pipe
- 10% increase in volume over stock cold-side pipe
- Elliptical shape to accommodate for larger Mishimoto radiator
- Rigid silicon construction prevents pipe movement under heavy load
- Available in black
- Mishimoto Lifetime Warranty
Product Description
We here at Mishimoto ditched the degradation-prone rubber for 5 layers of durable silicone reinforced with steel wire to make sure it stays put in the engine bay and holds its shape against the serious boost pressures running through it. Speaking of shape, the Mishimoto performance intercooler pipe is designed with a unique elliptical shape to accommodate for an upgrade to the Mishimoto performance radiator.
Our silicone piping also features a 2.5-inch inner diameter, increasing volume 10% over the stock piping and resulting in a 40% increase in flow. The Mishimoto performance cold-side intercooler pipe includes two high-torque worm gear clamps to ensure a secure connection, and is covered under the Mishimoto Lifetime Warranty.
TECH SPECS
| Applications | Ford Focus ST, 2013-2018 |
|---|---|
| Inlet (in) | 2.5 |
| Outlet (in) | 2.5 |
| Installation Notes | 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). |
Downloads
Purchase Includes
(2) High-Torque Worm Gear Clamps
Mishimoto Lifetime Warranty
Fresh off the assembly line comes our prototype intercooler pipes for the 2013+ Ford Focus ST. In the last update, I reviewed the stock piping, our 3D printed prototypes, and mildly teased what the final version of this kit will look like, so it's time for a full reveal. Let's go through some of the design features and performance numbers that have resulted from this project.

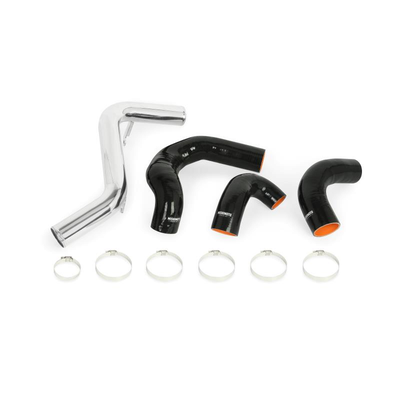

Hot-side intercooler pipes
The hot-side kit will have a solid aluminum center section with silicone couplers attached to the turbo and intercooler outlet. It fits nicely around the engine oil pan and is mounted with brackets to keep it in place. However, a balance between flexibility and rigidity is important, which is why the couplers are long.
The 2013+ Focus ST begs for more power. While it isn't the easiest thing to accomplish, our engineers are here to help give you quality parts that will help push your ST to and over the edge of high performance. As our release for our Performance Intercooler sits on the horizon, there's no better time than the second official day of summer "17 to tell you Focus ST enthusiasts that we are also developing upgraded intercooler piping to compliment it, because, why stop there?
Underbody shot of the stock intercooler piping on a 2013 Ford Focus ST
Warranty
Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.
For our complete warranty policy, please click here.
Frequently Asked Questions
