Mishimoto 2010–2012 Dodge 6.7L Cummins Intercooler, Part 4: Prototype Intercooler Testing
Interested in purchasing this Cummins Intercooler? Check out our product page for more information!
Mishimoto Dodge 6.7L Cummins Intercooler
Time to see how efficient our cooler design is! We would be pulling our test truck onto our Dynojet to collect the data needed to evaluate the intercooler fully. Check out the conditions of our testing procedure below!
Vehicle: 2010 Dodge Ram 6.7L Cummins, Automatic Transmission, Performance Air Intake, Exhaust Modifications, Tune
Ambient Temperature: 70°F–76°F
Sensors: PLX Devices with Temperature sensors on both the intercooler inlet and outlet
Process: 6th-gear pulls from 1,800 rpm to 3,200 rpm, with 4-minute breaks between each pull
Variable: Intercoolers were swapped on the dyno to ensure conditions were identical between the pulls.

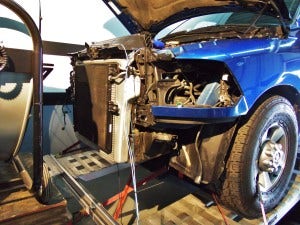

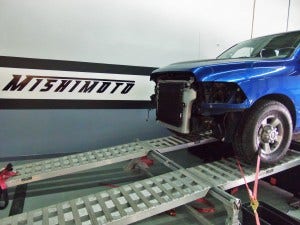

Check out a few shots of this truck on the dyno!

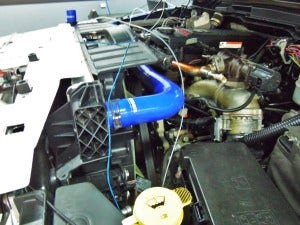

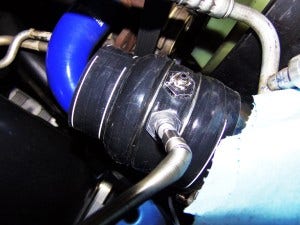

The wiring harness you see coming from the engine bay connects to our temperature sensors. Check out a few shots of our data collection equipment!
Once we had everything set up, we made several pulls with each intercooler. Check out the video captured during our testing!
Check back next time for the results from our testing!
Thanks for reading!
