Rubbing Elbows with the 6.0L! Mishmoto Powerstroke Intake Elbow R&D, Part 3: Final Product
Interested in purchasing our 6.0L intake elbow?
We have quite a bit going on with this project! Our discounted pre-sale has launched, and we are currently accepting orders. In addition, our final prototype elbows arrived and have been test fitted to ensure appropriate fitment. Without further delay, let's take a look at our finished intake elbows.
Final Product Images
First, a lineup of the stock elbow next to our three finish options.

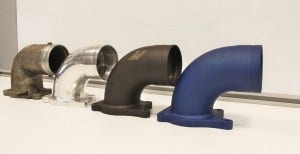

Stock 6.0 intake elbow (left) and three Mishimoto intake elbows, final prototypes
Stock 6.0 intake elbow (left) and Mishimoto intake elbows
Here's a look at the mounting flange.

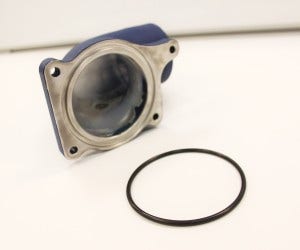

Mishimoto 6.0 intake-elbow mounting flange and seal
Notice the various inclusions in our kit. We aren't simply throwing the elbow in a box and shipping it out. Our kit includes all the items below.
- New mounting hardware
- O-ring seal
- Intake elbow boot
- Two constant-tension T-bolt clamps
Installed Shots
We needed one more test fit to ensure that our final product slides into place perfectly. We selected the powder-coated blue elbow for this purpose. Check out a couple shots of this component in the engine bay of our shop truck!

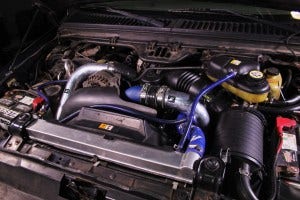

Mishimoto 6.0 Powerstroke intake elbow installed

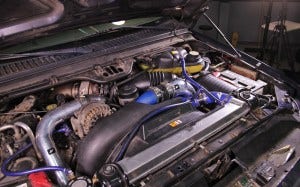

Mishimoto 6.0 intake elbow installed

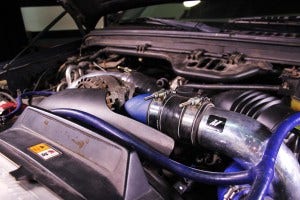

Mishimoto 6.0 intake elbow installed
