Our Performance Intake kit is now available on Presale! Act fast to take advantage of the special pricing!

Chevrolet Camaro Performance Intake Kit PreSale

It certainly has been no picnic to get to this point. However, working on this unique, factory-turbocharged application from Chevy has brought to light the importance of the type of testing we do for our intake projects. We've gone through many configurations, spent countless design hours and logged hundreds of miles of road testing. This isn't overkill at Mishimoto, we deem it a necessity.

The amount of time that passed by was no mistake. We spared no R&D expense with this kit. Being as thorough as possible with every aspect of how it looked and the type of performance it delivered was a priority. In the last update, we went through why we encountered a few hiccups during testing, but we took our time in working through the problem instead of rushing a less-than-perfect product to market.

Top to bottom: 90˚ bend, 50˚ bend, and design

Audiation - the ability to listen to or play music in your head without physically hearing any of it.

Just by reading notes on a page of sheet music, talented musicians can hear the music in their minds. Truly gifted musicians can hear a relatively complex piece of music played once and then repeat it, perfectly, note for note, on their preferred instrument. That's talent. It's hard to teach that to just anyone. This is the concept of audiation.

I bring up this musical analogy to illustrate a point. These skills are engrained and conceptualized deep within their psyche and motor functions just as deep as breathing or walking. We, gearheads, have our own concepts that are as commonly used and seemingly simply as notes on a page. But how often do we think about what they really mean?

Mad Mike's Insane quad-rotor, twin turbocharged MX-5

What does this have to do with this twin-turbocharged, quad-rotary ND Miata piloted by professional drifter "Mad" Mike Whiddet? Anyone can look in this engine

We are now one step closer to completing this induction project! The bulk of our testing is just about finished and we have gotten some awesome results. One of our biggest objectives was to increase the internal volume over the stock intake. With more air surging through the hose, the potential for improved power output is increased as well.

Prototype 3D printed 2015+ Mustang parts

The sound imposer is blocked off here, but it will be deleted!

In our previous post, we said we would include all four ports and attachments. However, we decided on a complete omission of the sound imposer port. You will see what that looks like later on in this post. The 3D printed part you see above does have the port, but it is blocked off, simulating how the final design will perform on the dyno. Speaking of which, let's look at our dyno runs!

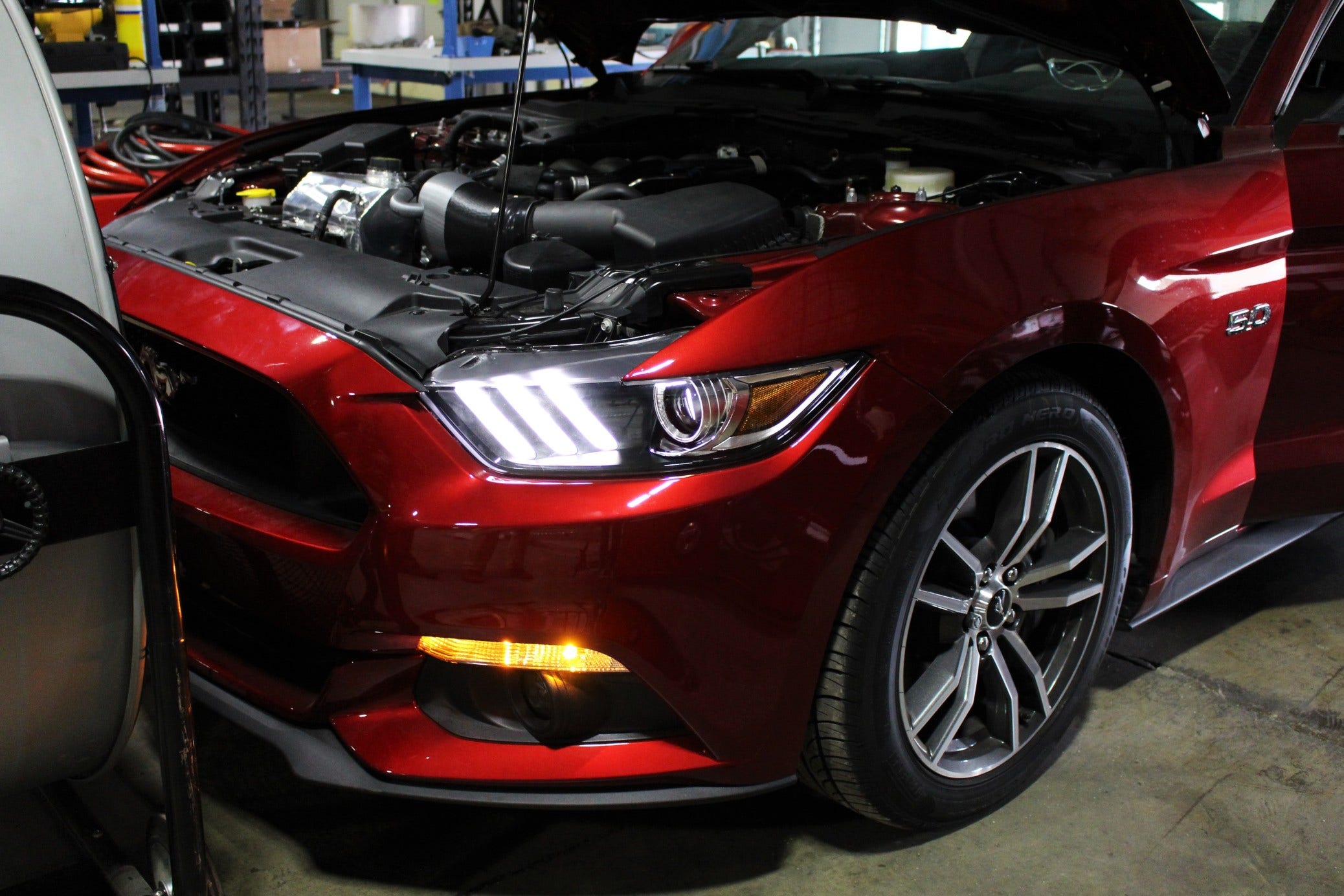

2015 Mustang GT parts testing

The stock intake tube begins at 95mm from the top of the airbox, which then leads into the accordion section that necks down to 87.5mm.

The time has come to test our prototype design for the MK7 intake. After weeks of designing and fabrication, the prototype for this VW is now ready to hit our Dynapack dynamometer so we can collect some data.

Testing these prototype MK7 GTI parts for overall power output gains over stock is important, so that's the first thing we needed to figure out. The larger diameter piping compared to the stock system provides increased airflow that will have a direct impact on improving power output. This car did happen to come with an aftermarket stage 1 tune on it, so we tested our intake with that software upgrade.

Hooked up on the dyno for prototype MK7 GTI parts testing

We also wanted to provide sound clips of the car with the intake on so you can hear the difference.

Below, we have some footage of the MK7 running on the Dynapack, so check it out!

Our first impression was that this MK7 GTI intake is a big improvement, especially with regard to sound. You can hear the turbo spooling up and the

Interested in purchasing our 6.0L intake elbow?

We have quite a bit going on with this project! Our discounted pre-sale has launched, and we are currently accepting orders. In addition, our final prototype elbows arrived and have been test fitted to ensure appropriate fitment. Without further delay, let's take a look at our finished intake elbows.

Final Product Images

First, a lineup of the stock elbow next to our three finish options.

Stock 6.0 intake elbow (left) and three Mishimoto intake elbows, final prototypes

Stock 6.0 intake elbow (left) and Mishimoto intake elbows

Here's a look at the mounting flange.

Mishimoto 6.0 intake-elbow mounting flange and seal

Notice the various inclusions in our kit. We aren't simply throwing the elbow in a box and shipping it out. Our kit includes all the items below.

• New mounting hardware
• O-ring seal
• Intake elbow boot
• Two constant-tension T-bolt clamps

Installed Shots

We needed one more test fit to ensure that our final product slides into place perfectly.

Interested in purchasing our 6.0L intake elbow?

We're back with another update on our 6.0L Powerstroke intake elbow project! Last time we covered the stock unit and noted the plans we had for our rendition of the intake elbow. After collecting data from the stock piece, we began mapping our prototypes on 3D-modeling software.

Prototype 1

Our first prototype comes by way of the almighty 3D printer. We made a quick design in Solidworks to map out the appearance and dimensional constraints for our design.

Mishimoto 6.0L Powerstroke intake elbow prototype 1

Mishimoto 6.0L Powerstroke intake elbow prototype 1

The primary goal for this prototype was to check fitment of our lower flange and placement of our NPT bungs, and also to ensure that our inlet diameter and lip were correctly designed. The style of our "M" logo on the pipe is likely to be changed in the final design, which is reflected in our modeling images below.

Here are a few shots of this piece during test fitting!

Mishimoto Powerstroke

Interested in purchasing our 6.0L intake elbow?

If you are familiar with our brand, you know we have a vast product line of heat exchangers and associated products available for the Ford 6.0L Powerstroke. We've had great feedback from our customers about our existing products as well as the new products they would like to see come out of our garage. Now that we have our own 6.0L shop truck (shown below), we have easy access to a vehicle for product development and test fitting.

Mishimoto 6.0L shop truck

We decided to come up with our own rendition of an inexpensive, free-flowing intake elbow for the 6.0L. Yes, we realize there are ample options currently on the market. That said, we would like our design to have the following features.

• Great value and high quality materials
• Minimum 2 1/8" ports for sensors, nitrous, or meth injection
• Pipe design with optimal flow and smooth internal flow
• Includes all hardware needed for installation

After doing our research, we are quite certain that power

Interested in purchasing our Mustang oil cooler? Check out our product page for more information!

Mishimoto Ford Mustang 5.0L Oil Cooler Kit

With one round of successful development and data collection complete, our engineers set out to improve upon the first design. After gathering airflow data for different bumper locations, they decided to move the cooler to the lower bumper opening as opposed to the grille area. Instead of modifying the existing brackets, our team developed a new bracket that would suspend the cooler and attach directly to the bumper support. This new bracket not only brought the cooler to a better location, but it also provided a more rigid, robust mounting system for the large 25-row cooler. This also eliminated the need for four brackets; instead just one cross bar would be needed. Check out a few shots of the prototype!

Oil cooler bracket prototype 2

Oil cooler bracket prototype 2

Once fabricated, the team was very pleased with this new design. The cooler placement

Interested in purchasing our Mustang oil cooler? Check out our product page for more information!

Mishimoto Ford Mustang 5.0L Oil Cooler Kit

With our test vehicle in the shop, our team set to work planning our attack on this Mustang. Our primary goal was to achieve significant temperature decreases. We got this beast in the air and inspected our challenges with the oil sandwich plate location. Our standard and thermostatic sandwich plates use either a ¾-16 or M20 sandwich plate adapter. This component secures the sandwich plate between the block and the oil filter.

Oil sandwich plate exploded

Oil sandwich plate assembled

The images above show the orientation of the sandwich plate and filter on the engine. Oil passes through the filter, then into the sandwich plate. The two ports on the plate will have lines feeding the cooler. Once through the cooler the oil will return to the sandwich plate via the second port and back into the engine. This is a common practice for adding an oil cooler
