Ford Mustang 2.3L EcoBoost Intercooler Pipe Kit 2015+

Interested in picking up our Mustang EcoBoost Intercooler Pipe Kit? Check out more details on our product page linked below!

Mishimoto Ford Mustang EcoBoost Intercooler Pipe Kit

After putting some final touches on our pipe design in 3D modeling software, we concluded the design phase of this project. With only inspection of our final prototype and final test fitting on the agenda, this project was nearly complete.

Final Prototype Pipe Kit

Check out a look at the final prototypes we worked up!

Mishimoto hot-side (left) and cold-side (right) intercooler pipes

Mishimoto hot-side (left) and cold-side (right) intercooler pipes

Mishimoto hot-side (top) and cold-side (bottom) intercooler pipes

As noted previously, these pipes are constructed from aluminum, mandrel-bent piping. This will provide the rigidity and smooth flow you want within your CAC system.

Our cold-side mounted bung is shown below.

Mishimoto cold-side intercooler pipe bung

Next, take a look at the BPV flange we developed in order

Interested in picking up our Mustang EcoBoost Intercooler Pipe Kit? Check out more details on our product page linked below!

Mishimoto Ford Mustang EcoBoost Intercooler Pipe Kit

3D Pipe Models

As with all our projects, we would be using 3D modeling software (Solidworks) to put our final design into both 3D and drawing forms. Not only does this put our design into a viewable format, but it also allows for digital tweaks as well as confirmation of fitment and precision with the overall product design.

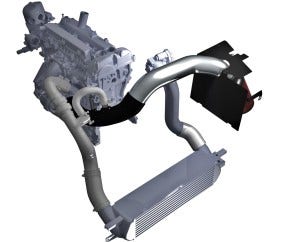

Check out the rendering below showing our projected cold-side pipe design.

Mishimoto cold-side intercooler pipe 3D model

Ford made this one fairly easy for us. This pipe features a pretty smooth shape and routes from the intercooler to the throttle body. An aluminum counterpart is going to be a huge improvement over the stock rubber hose referenced in the last post. Each connection point will be secured with a Mishimoto silicone coupler and our T-bolt clamps for a solid connection. Note the
