Subaru STi Intake 2015+

Interested in purchasing our 2015 STi intake system? Check out more details on our product page linked below!

Mishimoto Subaru STI Performance Air Intake

As noted earlier in this article series, we would be tackling a race intake system to go along with our bolt-on unit. So what makes the race system different? For this particular system we are using a larger-diameter intake pipe with a larger MAF housing. This means greater intake flow, but it also means it will no longer function with the factory tune. This system is meant specifically for drivers who want aggressive professional tunes so they can take advantage of airflow modifications such as larger turbochargers and high boost pressures.

Because the 15' model shares the EJ from the previous generation, we would be using the same intake pipe and filter as we did with our 2008-2014 kit. This unit is shown below.

So, all we truly needed was to design an airbox that would accommodate this pipe and function with the body of the new 15'

Interested in purchasing our 2015 STi intake system? Check out more details on our product page linked below!

Mishimoto Subaru STI Performance Air Intake

Dyno Testing

Time to see what kind of power gains we are able to achieve with our intake design! First, we strapped this Launch Edition to the dynamometer.

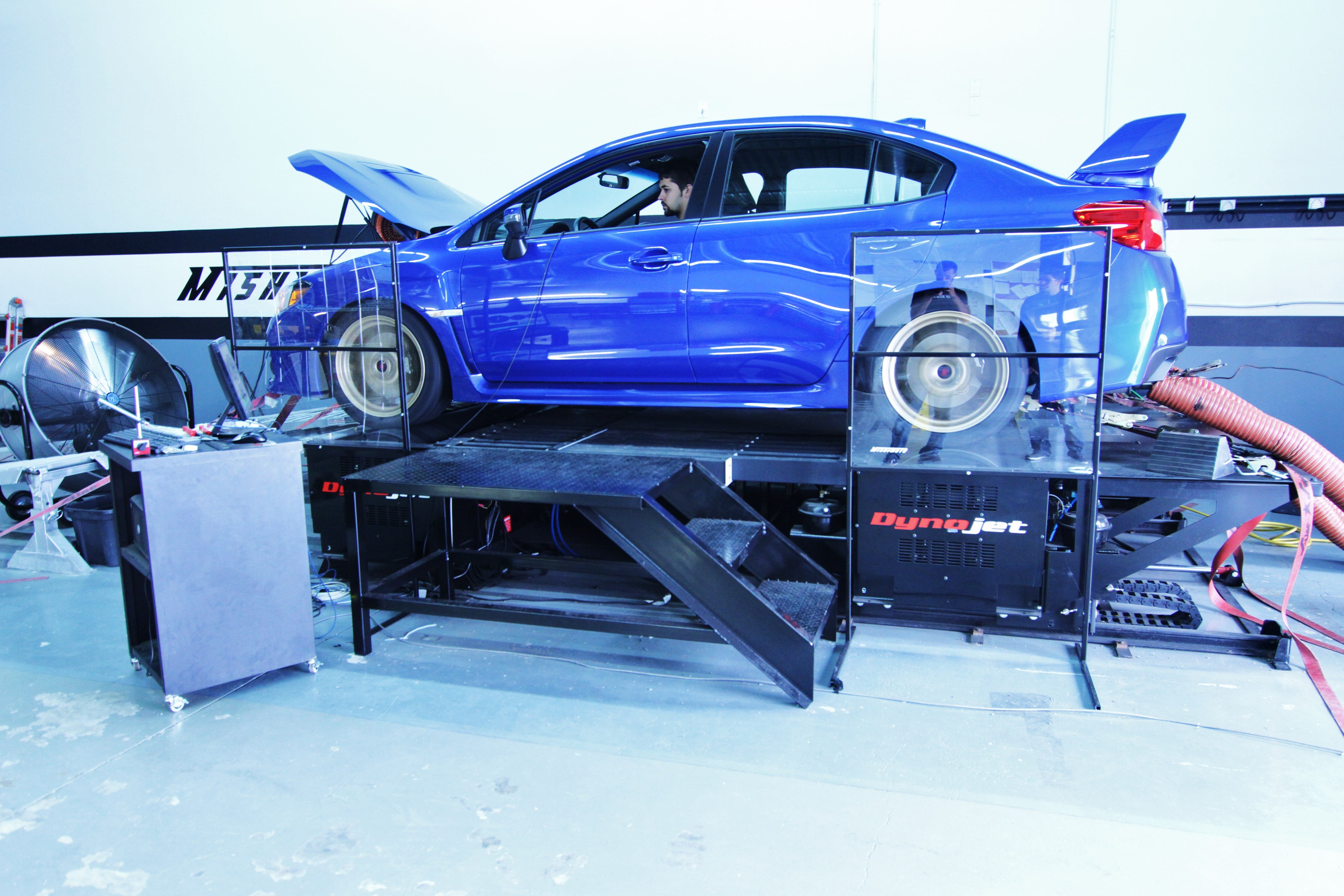

2015 STI on the dynamometer

2015 STI on the dyno

Then we began making pulls. On our first day we tested only the stock intake system. Once complete, we installed the Mishimoto intake system and sent the vehicle out for some road testing. We wanted to allow the ECU to adjust to the new intake before making our pulls. After well over 150 miles of road use, we returned the next day to compile dyno data for the Mishimoto intake.

2015 STI on the dyno

Testing Results

So how did we do? Well, I think the plots below summarize our results quite well.

Mishimoto intake shroud render

Thank you very much for following along with the progress of our intake. This was quite an exciting project!

We

Interested in purchasing our 2015 STi intake system? Check out more details on our product page linked below!

Mishimoto Subaru STI Performance Air Intake

Prototype Fabrication

After experimenting with some boxed designs in Part 1 of this write-up, it was time to turn our attention to a shrouded setup, similar to what we offer for the 2008-2014 models. We're hoping we could utilize the piping from our existing kit, which is well designed and has proven power gains. After placing the shroud into position, we found that it would certainly fit, but would require some modification. The fabrication work began! Check out a few shots taken during the process.

Mishimoto intake shroud modification

Mishimoto intake shroud modification

Mishimoto intake shroud modification

Once all fab work was completed, we had a functional shroud that we could use for testing purposes. We could also use this shroud to develop a 3D model for our production units. Take a look!

Mishimoto modified intake shroud

Mishimoto

Interested in purchasing our 2015 STi intake system? Check out more details on our product page linked below!

Mishimoto Subaru STI Performance Air Intake

Launch Edition Subaru STI in Mishimoto garage

Introduction

Our team is finally working on some cool components for the new 2015 Subaru STI! As you know, the 2015 STI is essentially a hybrid of old and new Impreza components. It features the newer body style paired with the trusty EJ engine, instead of the new DIT motor featured in the WRX. We won't get into which is better or which we prefer, because we have nothing but praise for the updated chassis. Our team has spent a great deal of time with both vehicles, and we are impressed with how the STI drives, handles, brakes, and functions as a comfortable yet sporty sedan.

As you may already know, we developed an intake system for the 2015 WRX recently, and we had a ton of success producing some really nice power gains. We also offer an intake system for the 2008-2014 WRX/STI equipped with

Interested in purchasing our 2015 STi intake system? Check out more details on our product page linked below!

Mishimoto Subaru STI Performance Air Intake

Many of you followed along as our team developed a variety of new products for the 2015 WRX. Recently, we were lucky enough to come into contact with a gracious 2015 STI Launch Edition owner who was willing to lend us his vehicle for a few days of product development, test fitting, and of course dyno testing. Check out a neat gallery of images featuring the vehicle and a video featuring dyno pulls with our prototype performance air intake. More information on our intake design coming soon!

Thanks for reading and taking a look at the images! Check back with us next week for a video overview of some Mishimoto components that carry over from the previous generation as well as a look at projects we are working on for the 2015!

Thanks
